Trevoli C3S Series 3" Bore Pumps

The Trevoli C3S series 3" bore pumps are ideal for deep well bore applications for water transfer where a 3" pump is needed. This series of pump comes with multiple built-in protections and a factory filled anti-freeze liquid to ensure your pump is kept in working order in various situations.

The C3S pumps feature an ultra-high energy efficiency permanent magnet motor that delivers exceptional performance with minimal energy consumption, along with an incorporated non-return check valve to prevent backflow efficiently.

These pumps have a water cooling design to ensure proper cooling and lower temperatures of the motor. This is based on a water temperature range of 0°C to 55°C.
Its erosion resistant impellers and shielded motor ensure reliable continuous operation, this pump will aid you with a variety of your water needs.

Pump Recommendations:

We recommend installing a non-return valve off the outlet of the pump.

Specifications:

* 140-280 Volts
* Single Phase
* Outlet: 32mm / 1 1/4"

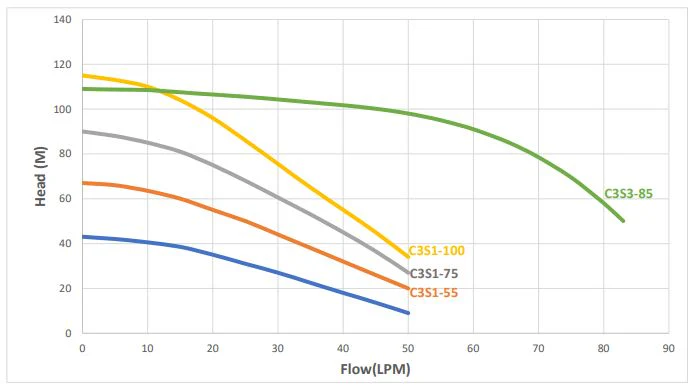

 Flow vs Head

Model	hp	kW	m³/h	0.0	0.5	1.0	1.5	2.0	2.5
C3S1-40	1.0	0.75	Head (m)	43	42	38	34	26	18
C3S1-55	1.0	0.75	Head (m)	66	65	58	53	38	30
C3S1-75	1.0	0.75	Head (m)	90	88	79	70	52	42
C3S1-100	1.0	0.75	Head (m)	112	110	102	85	65	55
C3S3-85	2.0	1.5	Head (m)	120	113	111	110	105	100

Pump Features:

* Maximum Water temperature: 55°C
* pH: 5.0-9.0
* Stainless Steel outlet
* Factory filled with anti freezing liquid, frost proof to -20° C
* Built in over voltage / under voltage protection
* Built in run dry protection
* Built in overload protection
* Built in over temperature protection
* 1.5m Cable
* Please note this does not include control box

Motor Features:

* Higher efficiency design leads to lower temperatures from motor
* No mechanical seal meaning less maintenance
* RPM: 8000
* Epoxy encapsulated stator
* Forced water cooling design
* Maximum starts per hour: <30
* Maximum immersion: 150m below static water level

2 Year Back to Base Warranty
