Johnson Heavy Duty Circulation Pumps 12/24V DC

Heavy duty centrifugal pumps for fresh water circulation. A line of tough, durable and compact centrifugal pumps combining high flow rates with very low electrical current consumption. CM-series – a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation.

C090 – mechanical sealed pumps with a motor designed for continuous operation. Suitable for fresh water and ethylene glycol circulation. CE-approved

Features:

* Extra heavy duty construction
* Motors designed for continuous operation
* CM10 and CM30 magnetically driven
* C090 with mechanical seal
* Designed for fresh water handling

Design features:

* Pump body: Thermoplastic (PPA) (C090: PA66)
* Impeller: Thermoplastic (PPS) (C090: PA66)
* Shaft:Stainless steel
* Seal (C090): Mechanical seal
* Magnet housing: PSU
* Motor:12 V or 24 V DC enclosed permanent magnet, ball bearing mounted for continuous operation
* Liquid temperature:-30°C – +100°C (-22°F – 212°F)

Hose connections
CM10 Mag drive:Ø 16mm (⅝") or Ø 20mm (¾")

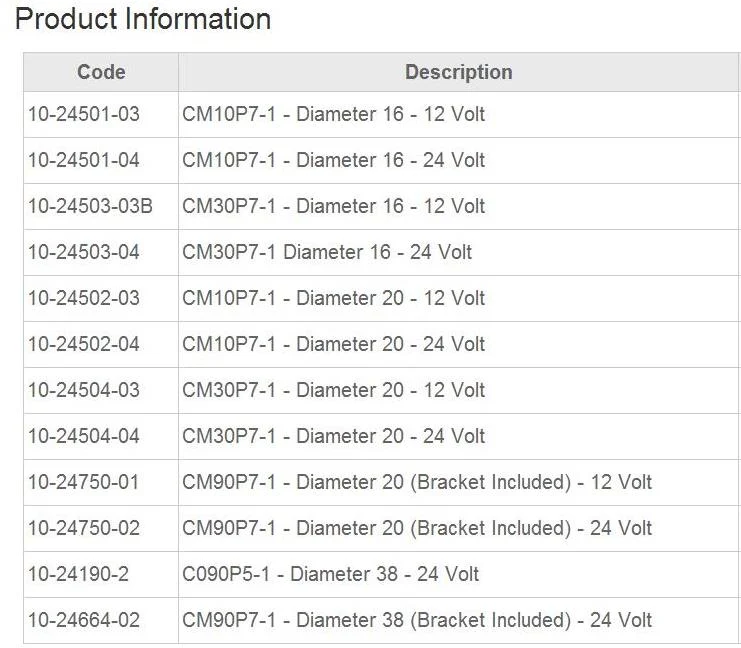

Model	Capacity 16mm (⅝)	Capacity 20mm (¾)	Capacity 38mm (1½)
CM10P7-1 (12V)	15lpm @ .1 bar	18.5lpm @ .1 bar	n/a
CM10P7-1 (24V)	15lpm @ .1 bar	18.5lpm @ .1 bar	n/a
CM30P7-1 (12V)	20lpm @ .1 bar	26lpm @ .1 bar	n/a
CM30P7-1 (24V)	20lpm @ .1 bar	26lpm @ .1 bar	n/a
CM90P7-1 (12V)	n/a	50lpm @ .25 bar	90lpm @.25 bar
CM90P7-1 (24V)	n/a	50lpm @ .25 bar	90lpm @.25 bar
C090P5-1 (12V)	n/a	n/a	100lpm @ .1 bar
C090P5-1 (24V)	n/a	n/a	100lpm @ .1 bar
