Davey D Series Vortex Submersible Drainage Pumps

Please contact us regarding product as we don't always carry this item in stock

The Davey D series are suitable for pumping clean or “grey water” of neutral pH containing up to 10-40mm small soft solids. Some wear should be expected while pumping hard solids in suspension.

Specifications:

* 230v
* Single Phase
* Max immersion depth: 12 metres
* Max Operating Temperature: 50 degrees
* With Float switch

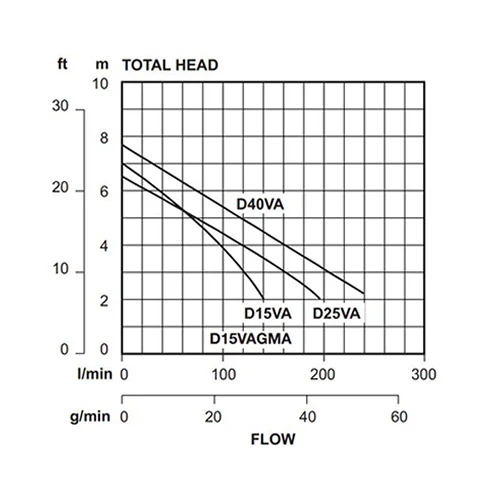

Model	Watts	HP	Head	Flow Rate	Outlet
D15VA	150	0.2	7m	150LPM	32mm
D25VA	250	0.3	6.5m	200LPM	32mm
D40VA	400	0.5	8m	250LPM	40mm



Model	Particle	Start Amps	Run Amps	Weight
D15VA	20mm	9.0	1.5	5kg
D25VA	25mm	12.0	2.0	9kg
D40VA	35mm	10.5	3.7	11kg

Features:

* Semi vortex, open impeller, centrifugal design
* Able to pump soft solids in suspension
* Double mechanical shaft seal in oil bath with hard faced silicon carbide/ceramic seal on pump side).
* Added motor protection
* Sand slinger lip seal
* Corrosion resistant 304 stainless steel motor shell, shaft, strainer and fasteners
* Automatic resetting thermal overload.
* HO7RNF oil resistant leads
* Includes Float Switch
* 10 metres long with 3 pin power plug

Applications:

*Grey water pumping
* Sump emptying
* Septic effluent disposal
* Water transfer
* Pumping of light slurries and factory waste

2 Year Back to Base Warranty
DataSheet
