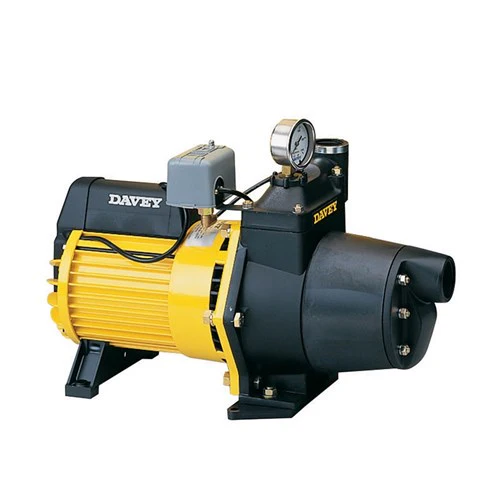

DAVEY-165S3 Shallow Well Pressure Pump 1.8kW 415V 50Hz 3ph

Suitable for suction depths down to 7m. This shallow well jet pump with pressure switch is a rugged pump suitable for supplying water for garden sprinklers, stock watering and washdown. Other popular applications include supplying water from dams, creeks, rivers  tank filling.

Specifications:

* Max Flow Rate: 165 LPM
* Max Delivery Height: 40m
* Max Suction: 7m
* Max/Min Water Temp: 50°C/1°C
* Inlet Size: 1 1/2"/ 38mm
* Outlet Size: 1 1/4"/ 32mm
* Three Phase

Features:

Davey LTEFC motor providing:
* IP56 rating for long term protection against vermin, dust and water • Designed for both high ambient temperatures and extremes in supply voltage making them ideal for remote areas
* Pump unit features the highest corrosion resistance with outstanding pressure capacity due to: Unique composite casing design with high strength aluminium outer casing and full internal casing made from precision moulded Rilsan.
* Mounting feet in high impact resistant corrosion proof Xenoy.
* Versatile pump - convertible to match required duty
* Colour coded jets and venturis for easy identification
* Easily converted to automatic operation
* 165S available with 3 phase motor
* Quick and easy installation
* Low maintenance
* Easy to service if required
* Oring seal hand tightened priming plug for easy operation

Applications:

• Farm water supply from dams, creeks and rivers
• Tank filling
• Stock watering
• Sprinkler supply

2 Year Back to Base Warranty
Spec Sheet
