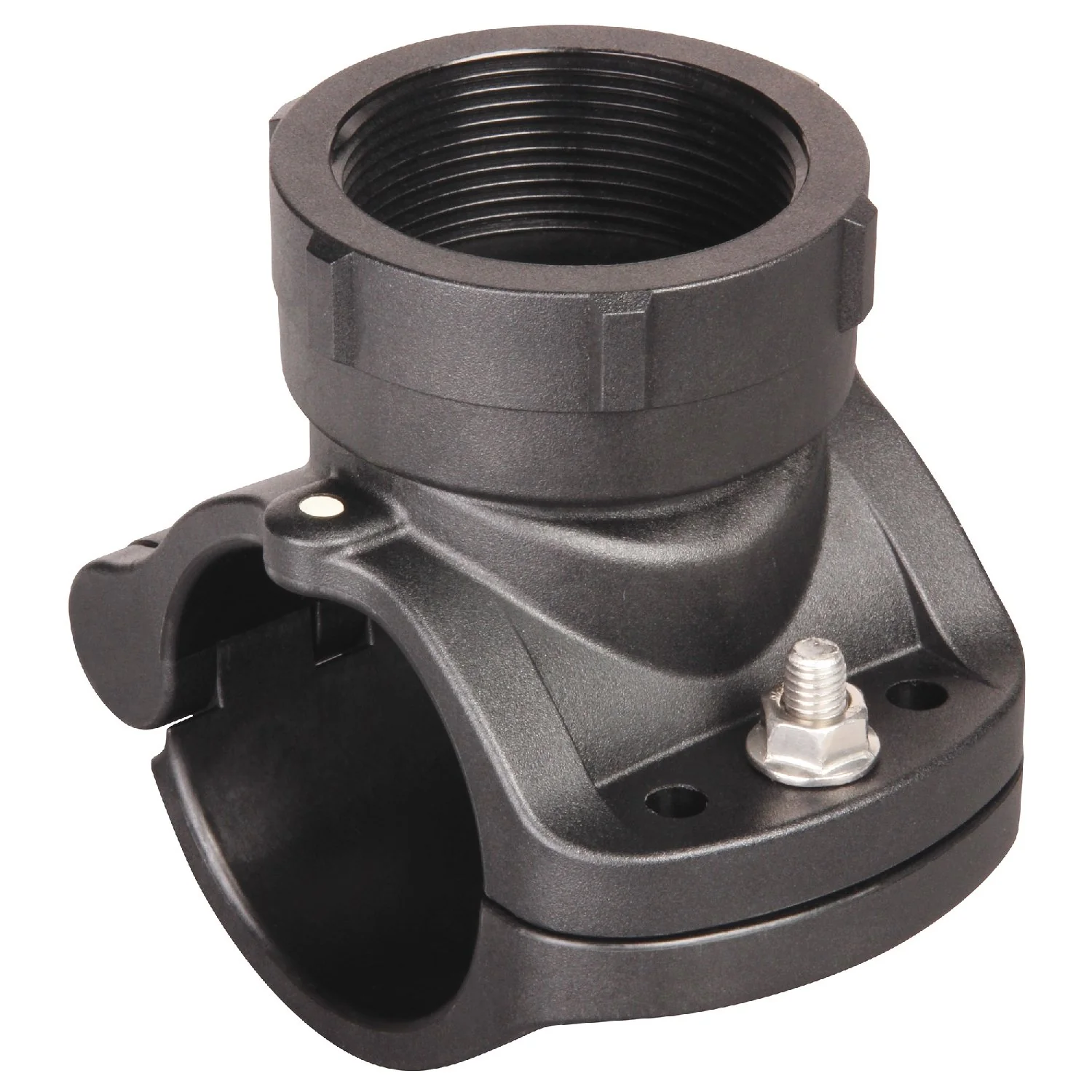

Hansen Tapping Saddle-Medium Density

Hansen products range of Tapping Saddles have revolutionsed the way people tee off the main pipeline.

Size	Metric	Seal Number	Imperial
HTSMD3225	32mm x 25mm	4	1 1/4" x 1"
HTSMD4025*	40mm x 25mm	3	1 1/2" x 1"
HTSMD4032	40mm x 32mm	3	1 1/2"" x 1 1/4""
HTSMD5025*	50mm x 25mm	2	2" x 1"
HTSMD5032	50mm x 32mm	2	2" x 1 1/4""
HTSMD5040	50mm x 40mm	2	2" x 1 1/2"
HTSMD6320	63mm x 20mm	1	3" x 3/4"
HTSMD6332*	63mm x 32mm	1	3" x 1 1/4"
HTSMD6340	63mm x 40mm	1	3" x 1 1/2"
HTSMD6350	63mm x 50mm	1	3" x 2"

*Includes Hansen Reducing Bush

HTSMD4025	SRB3225, 32mm x 25mm
HTSMD5025	SRB5025, 50mm x 25mm
HTSMD5032	SRB5032, 50mm x 32mm
HTSMD6332	SRB6332, 63mm x 32mm
HTSMD6340	SRB6340, 63mm x 40mm

Features:

* The spigot guarantees correct placement onto the pipe and security of seal
* The hinge opens past 180° allowing fast and easy installation in any situation
* The hinge allows the saddle to remain as one piece which prevents loss and contamination of parts in the trench
* The custom seal with spigots guarantees correct seal placement, a visible check of correct installation with a superior seal
* The bolt stays fixed to the body ensuring quick and easy installation and no lost parts
* The pilot hole in the base ensures correct hole placement
* Designed and manufactured with extra bolt holes on the larger sized saddles for peace of mind
* Common Stainless Steel M8 bolt on all sizes means only one tool required
* Packaging has all the information required for ease of purchase i.e. pipe size & type, thread DN, hole saw size etc
* Strong Compact Design Manufactured from strong, non-corrosive UV stabilised materials for a long life
