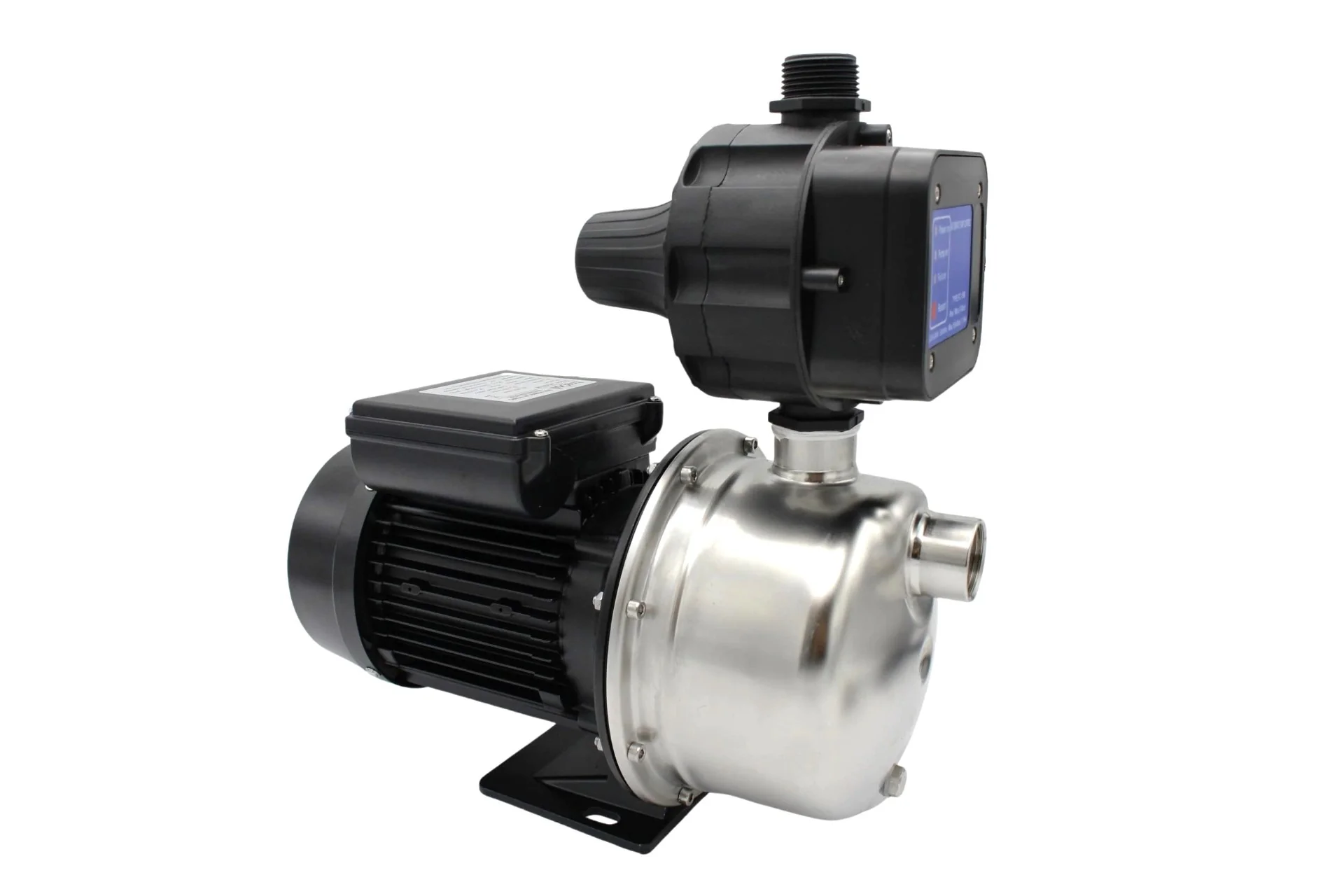

JEX075E - 1 HP Stainless Steel Jet Pump with Automatic Controller

This pump is ideal for domestic water supply, providing good pressure for a medium size single or double level home supporting up to 7-8 taps running at one time.

Specifications:

• Power (P1):1kW
• Power (P2):0.75W/1HP
• 220-240v
• Max flow rate: 70 LPM
• Max pressure: 60 psi
• Max suction lift: 8 metres
• Max discharge head: 41 metres
• Inlet/Outlet: 25mm

Features:

• Fitted with an electronic automatic pressure control system (provides constant pressure at constant flow)
• Self priming
• Insulation class B
• IP55 Protection
• Run Dry Protection
• Rated for Continuous duty
• Liquid temp range: 5 - 60 deg C
• Max operating pressure: 6 bar
• Dimensions: L: 405mm, H: 360mm, W: 207mm
• Weight: 10 Kg

Technical Features:

• Stainless steel pump housing
• Stainless steel motor shaft
• Stainless steel impeller
• Built in thermal overload protection
• 3 Pin Plug

Applications:

• Great for sucking water from wells and water tanks situated lower than the pump.
• Medium sized homes and irrigation
• Self priming for ease of installation
• Domestic Household Pumps

If you need any technical assistance with products selection or have any questions , please do not hesitate to comment on the auction or contact : THE PUMP WAREHOUSE - 0800 473 414.

2 Year Back to Base Warranty
