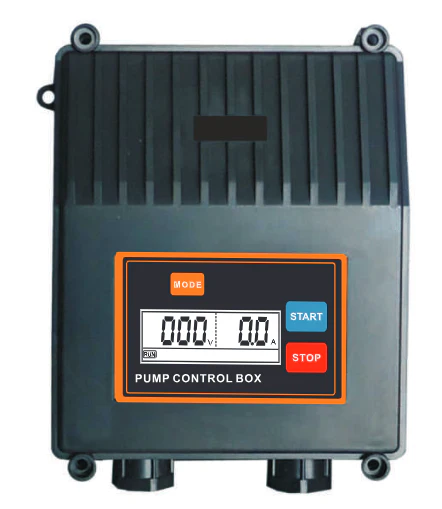

MP-S1 Plus Pump Controller

The MP-S1 Plus Single Phase Pump Control Panel is an intelligent device designed to ensure the efficient and reliable operation of single-phase pumps. Its key feature, Parameter Calibration, allows the controller to memorise crucial running parameters, providing tailored and reliable protection for various pump applications. The MP-S1 does this by logging a memory of power use at different stages of use. Once this memory is set, any operation over or under these ranges, the MP-S1 will terminate operation. This advanced control panel is versatile, capable of managing pumps for water supply and drainage by utilising different sensors and switches.

Specifications:

* 220-240V
* Single Phase
* 50/60Hz
* Rated Power range: 370w - 2200w
* IP54 protection
* Working temp range: -25°C to +55°C

Features:

* Overload protection
* Over / Under voltage protection
* Pump stall protection
* Dry run protection with sensor
* Memory function when power off & recovery
* Visual & Audible alarm for fault prompt
* Simple push button calibration
* Dynamic LCD

Applications:

Ideal for pump systems that have dynamic flow / pressure demands

* Household water supply
* Irrigation
* Water transfer
* Washing systems
* Pressure boosting
* Wastewater Pumps

Information:

Manual

1 Year Back to Base Warranty
