Pentax DTR Series - Submersible Grinder Pumps
DTR 200, DTR 300
The Pentax DTR Grinder Series submersible pumps are a centrifugal drainage pump that offer high head. The grinder pump is ideal for pumping sewage & waste water, for use in industrial & civil applications and whenever suspended solids have to be crushed. The DTR Grinder pumps are available in the mobile or permanent installation.

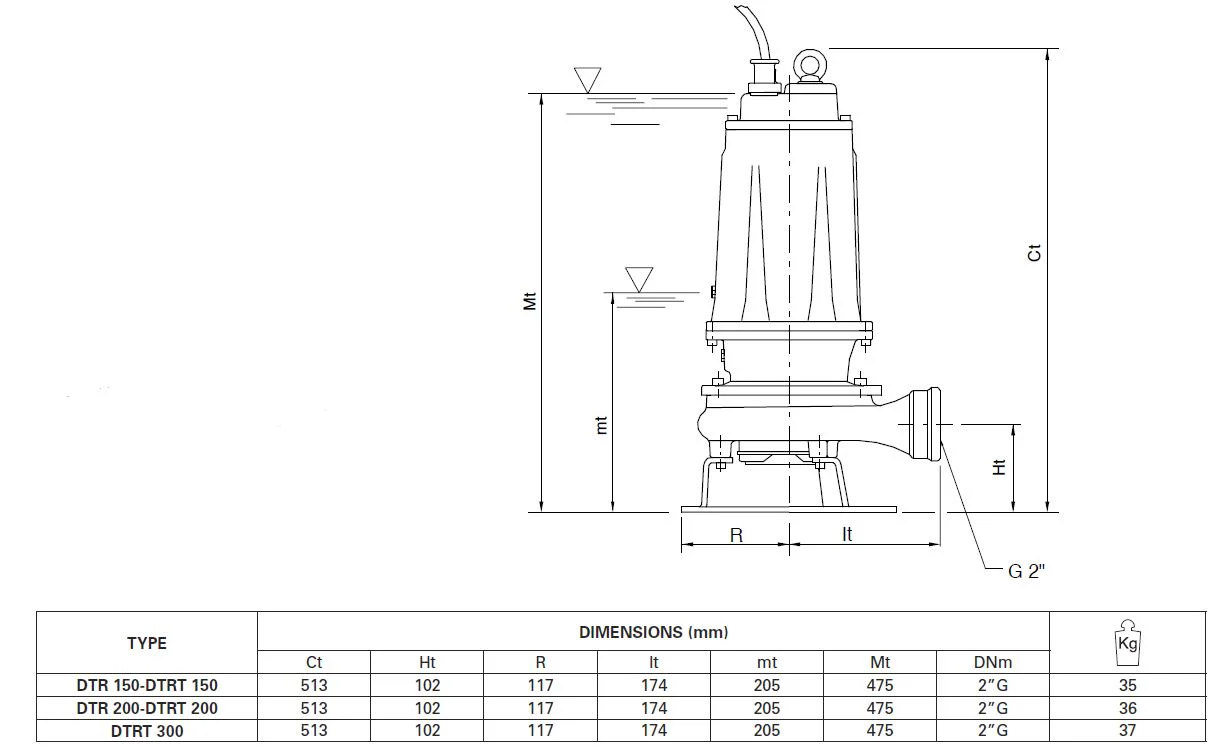

Specifications:
| Model | HP | kW | Flow Rate | Phase | Volts | Max Head | Outlet |
| DTR 200 | 2 | 1.5 | 300LPM | Single | 230 | 22m | 50mm |
| DTRT 300 | 3 | 2.2 | 300LPM | Three | 400 | 26m | 50mm |
* Requires Starter Capacitor(50µF For 2HP Model)
* Outlet Size: 50mm
* Maximum Immersion Depth: 20 meters
* Liquid Temperature: 0-40 degrees
* Cable Length: H07 RNF 10 meters
Features:
* Treated Stainless Steel Grinder
* Stainless Steel Shaft
* Thermal Overload Protection
* Double Mechanical Seal With Oil Bath
* Two Pole Induction Motor In Oil Bath
Applications:
* Pumping Sewage & Waste Water
* Heavy Civil & Industrial Applications
* When Crushing Of Suspended Solids Is Required
Pump Recommendations:
Please see dropdown menu for option and more information below:
* Cast Iron Threaded Ball Check Valve
* Tank Level Alert Alarm
* MP-S1 Plus Controller
2 Year Back to Base Warranty
