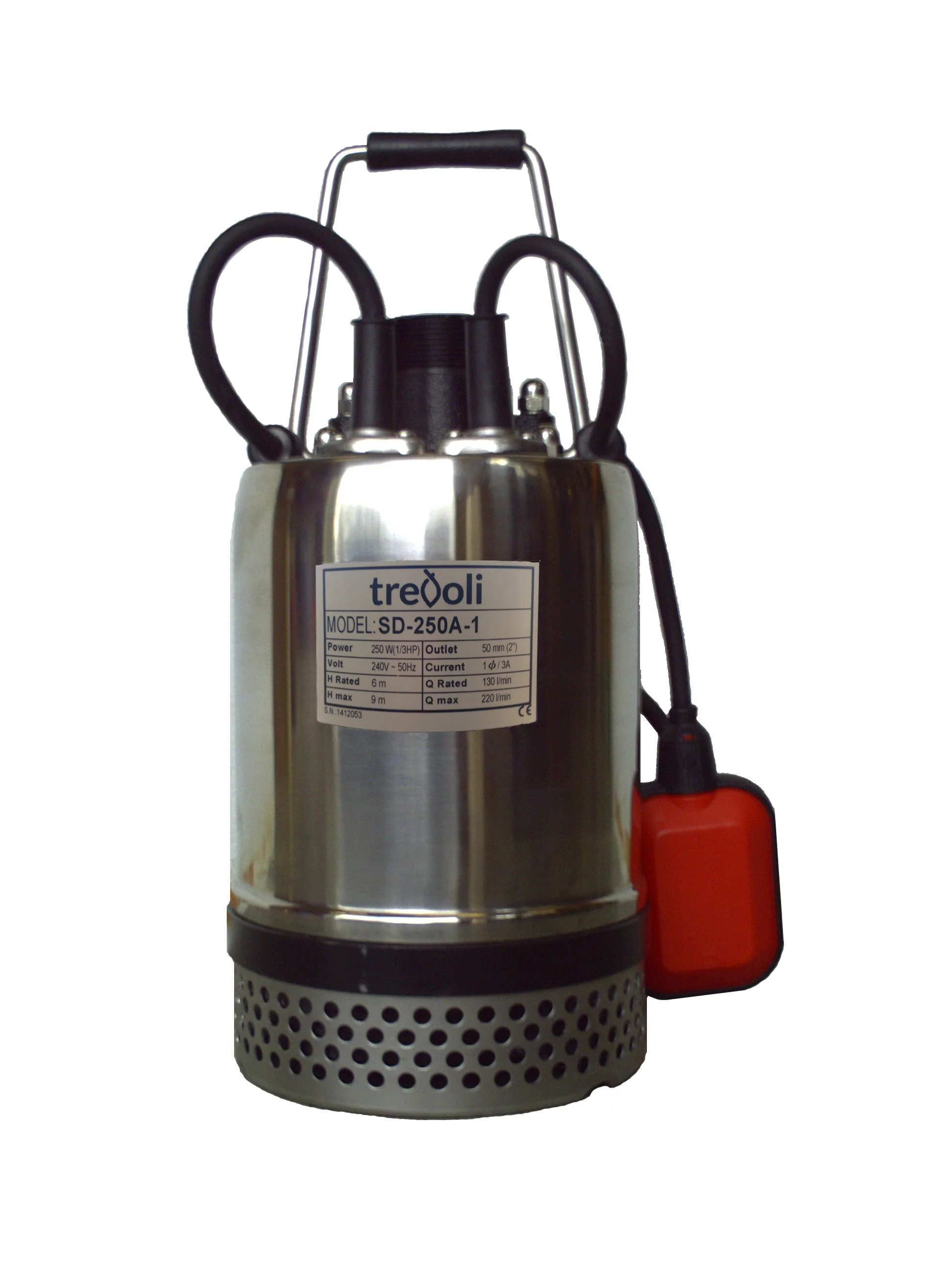

TREVOLI SD-250A Submersible Pump

The SD series of submersible pumps are built for continuous 24 hour operation with a stainless steel exterior and double casing.

Specifications:

* Wattage 250 or 0.3hp
* Flow Rate: 220LPM
* Pumping Height:9 meters max

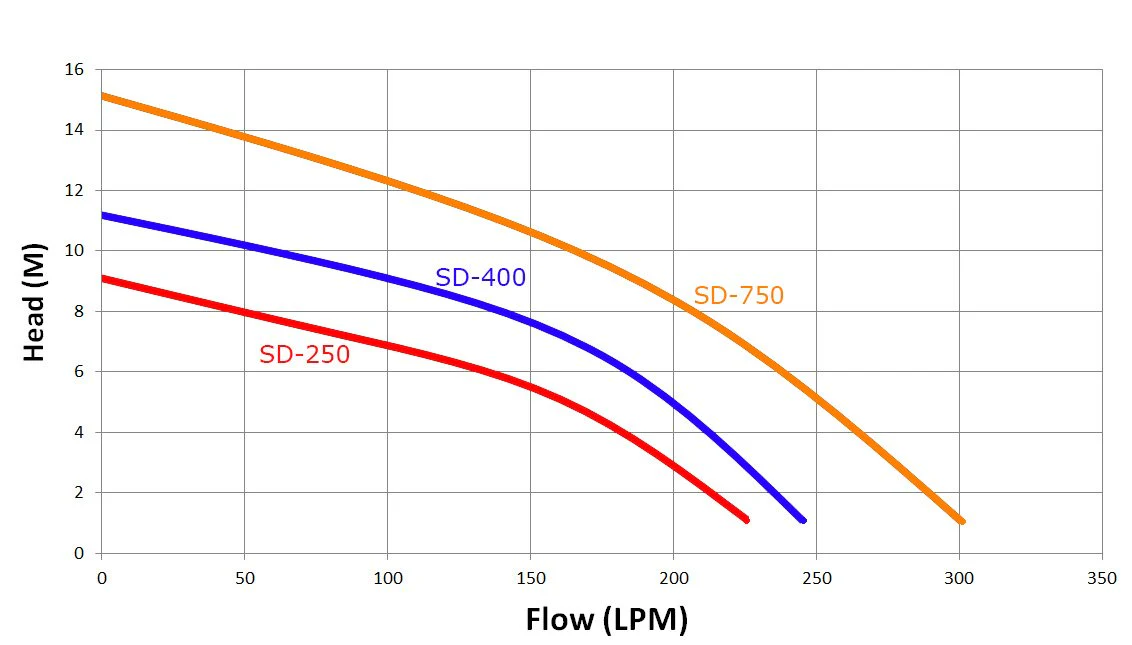

Flow Vs Head

1.5M	3M	6M
215Lpm	197Lpm	130Lpm

* Outlet Size: 2 inch/50mm
* Particle Size:7mm
* Maximum Depth: 8 meters
* Weight: 12kg
* Liquid Temperature: 0- 40 Degrees
* Rated Speed: 2900/3450RPM
* Protection Class: IP68

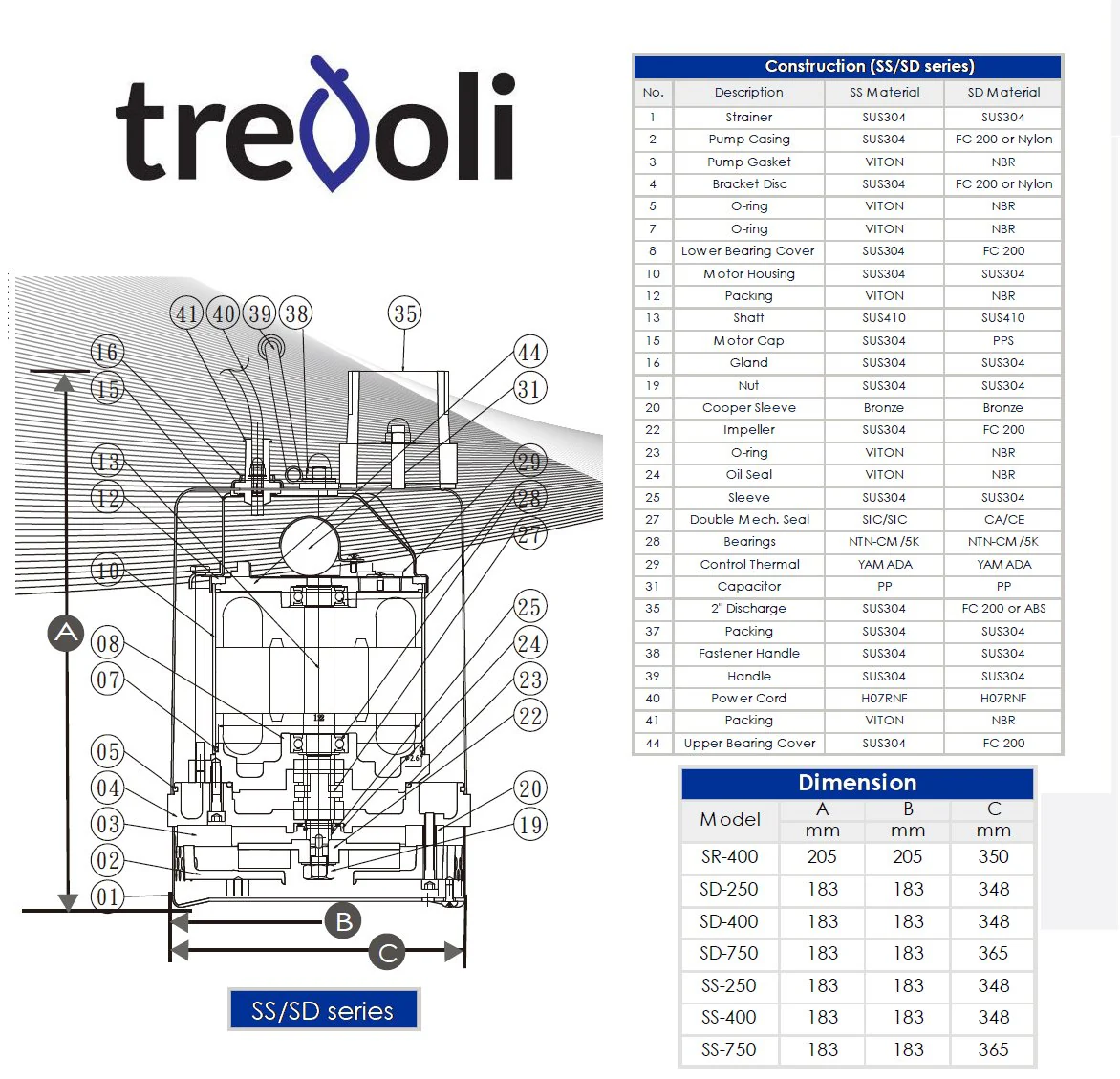

* Dimensions:(L)183mm x (W)183mm x (H)348mm

Features:

* B Class motor insulation
* Float switch controls turning pump on and off

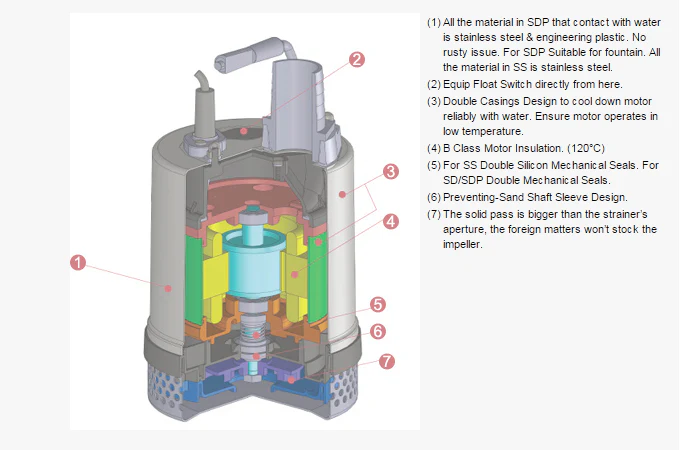

* Stainless Steel Double Casing for Water Cools Motor
* Integrated stainless steel outer casing and strainer
* Cutting-edge designed double casing with circumferential liquid flow allows continuous full load operation even when not fully submerged.
* Double mechanical seals ensure great durability.

Applications:

* Industrial use
* Draining floods

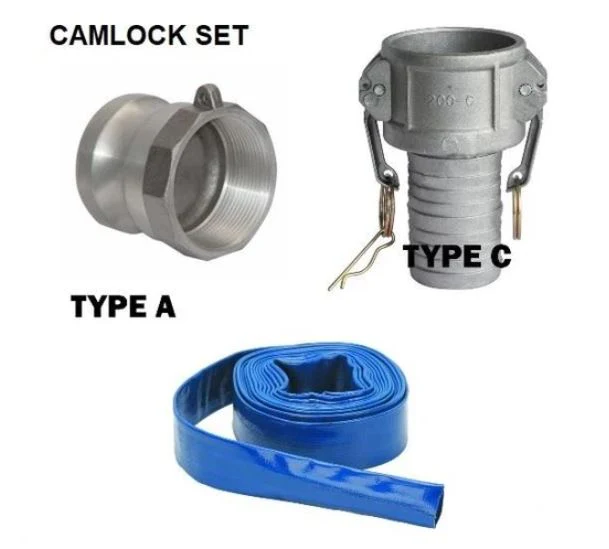

Kit Cam: Option 2:
* 20m x 50mm Layflat
* 1x Type A Aluminum Camlock (Male grooved adapter plus female pipe thread)
* 1x Type C Aluminum Camlock (Hose tail coupler female)



SD Series Brochure


2 Year Warranty
