TREVOLI SD-750A Submersible Pump

The SD series of submersible pumps are built for continuous 24 hour operation with a stainless steel exterior and double casing.

Specifications:

* Wattage 750 or 1hp
* Flow Rate: 300 Litres per minute
* Pumping Height: 15 meters max

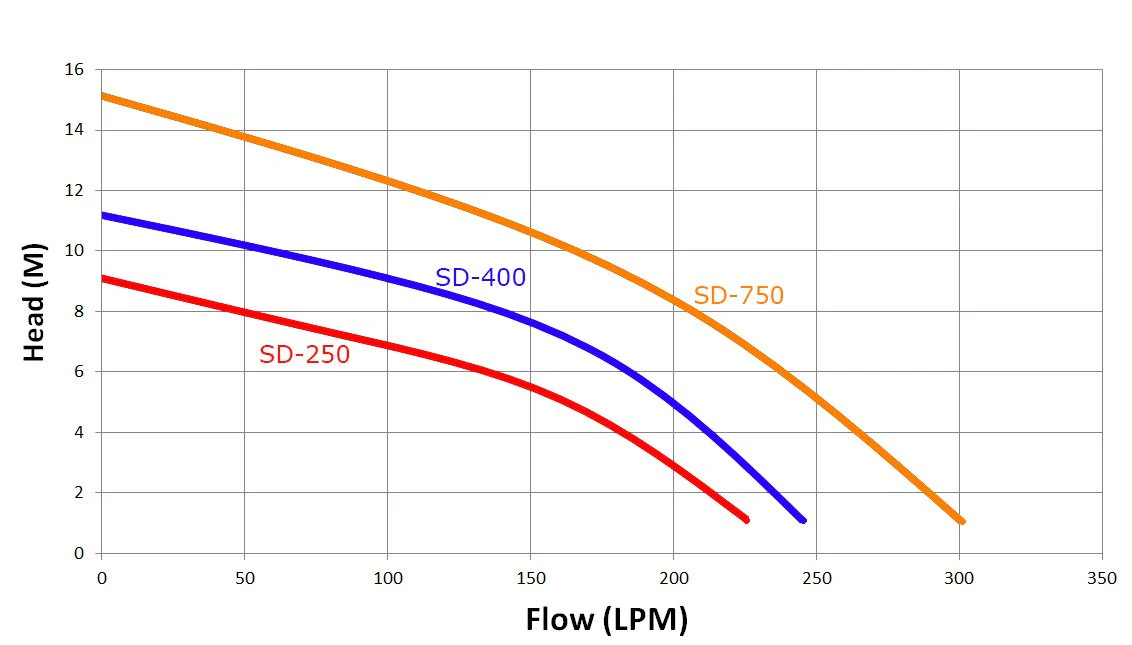

LPM FLOW @ Head

1.5m	3m	6m	9m	12m
295	280	240	185	110



* Outlet Size: 2 inch/50mm
* Particle Size: 7mm
* Maximum Depth: 8 meters
* Weight: 15Kg
* Liquid Temperature: 0- 40 Degrees
* Rated Speed: 2900/3450RPM
* Protection Class: IP68

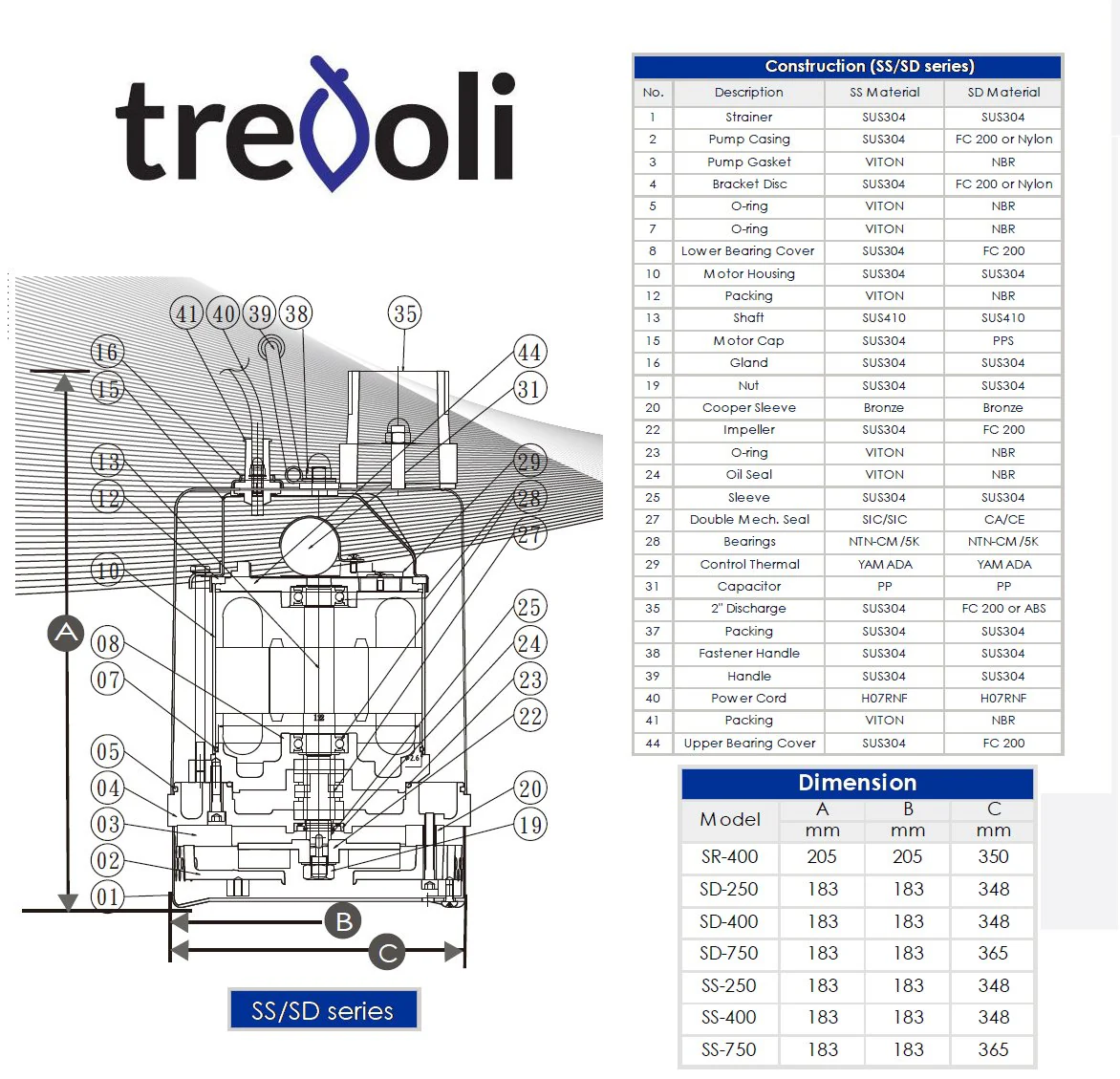

* Dimensions:(L)183mm x (W)183mm x (H)365mm- SD-750

Features:

* B Class motor insulation
* Float switch controls turning pump on and off

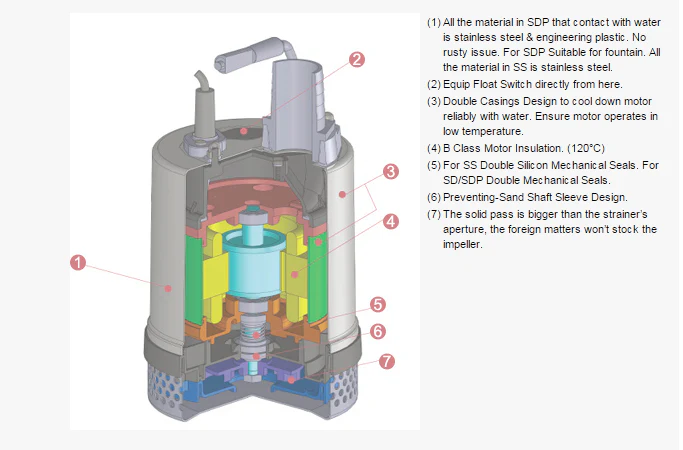

* Stainless Steel Double Casing for Water Cools Motor
* Integrated stainless steel outer casing and strainer
* Cutting-edge designed double casing with circumferential liquid flow, which allows continuous full load operation even when not fully submerged.
* Double mechanical seals ensure great durability.

Applications:

* Industrial use
* Draining floods

SD Series Brochure

2 Year  Warranty
