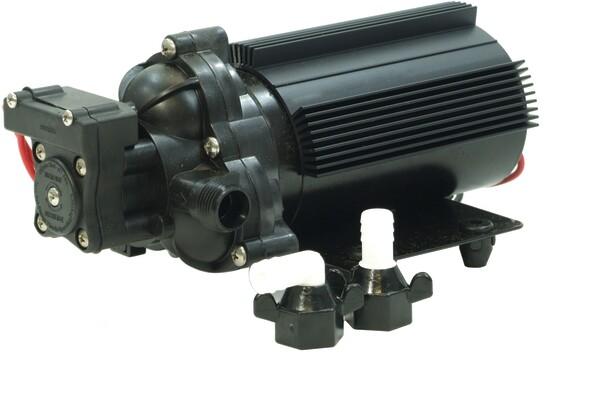

Shurflo 2088 Series- 12/24V Pressure Pump

The Shurflo 2088 series diaphragm pumps are made with chemically resistant materials to deliver reliable performance in high flow & moderate pressure applications. They can be mounted in any position for easy maintenance. They are used in a variety of spot spraying, multi-tip boom spraying and fertilizer drip applications that require flows up to 11.3/min.

Specifications:

Model	Volts	Max Flow	Max PSI/Bar	Port Size	Amps
235‑2088‑343‑135	12v	11.3	40/2.8	1/2"	7.7
235‑2088‑474‑144	24v	11.3	40/2.8	1/2"	2.73



PSI	BAR	LPM	Amps 12v	Amps 24v
10	0.7	10.2	5.3	2.41
20	1.4	10.2	5.5	2.63
30	2.1	8.9	6.7	2.71
40	2.8	7.8	7.7	2.73

Features:

* Chemical resistant materials
* Self-priming up to 3.7m
* Can run dry without damage
* Automatic demand
* Built-in check-valve prevents back flow
* DC



1 Year Warranty
