Spa Heaters R2 Series

The R Series Spa Heaters are ideal for spa baths, spa pools and small swimming pools. Designed to be connected on the outlet of your spa pump. When the spa pump starts, this heater will then activate. The heater runs on a pressure sensor. Two models available. R2 Heaters are non adjustable & are designed to run in conjunction with a touch pad or control unit to adjust heating.

H20-R2: Operating temperature 45 ° C, Reset temperature 37 ° C
H30-R2: Operating temperature 50 ° C, Reset temperature 40 ° C

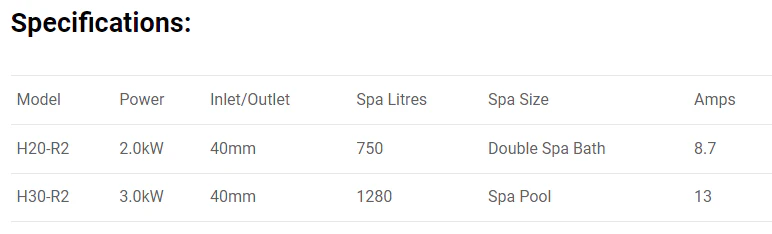

Specifications:

Model: H20-R2
*Power: 2.0kW
*Inlet/Outlet: 40mm
*Spa Litres: 750
*Spa Size: Double Spa Bath
*Amps: 8.7
*Voltage: 230
*Frequency: 50/60HZ

Model: H30-R2
*Power: 3.0kW
*Inlet/Outlet: 40mm
*Spa Litres: 1280
*Spa Size: Spa Pool
*Amps: 13
*Voltage: 230
*Frequency: 50/60HZ

Features:

*Pressure sensor
*Casing: SUS304 stainless steel
*Overheating cutout and pressure
*Temperature Range：5~+50℃
*Max working pressure：4.3 PSI
*1.5m cable without plug
*Connection fittings are supplied to suit 40mm ID Pressure pipework or 48mm OD

*Heating element: UL approved metal pipe, electric-heating element, Incoloy800 against high temperature and against causticity dedicated stainless steel pipe.
*Temperature controlling element: Double sheet metal thermostat, adjustable temperature with 45C or 50C automatic reset.

Applications:

*Spa Pools
*Spa Baths
*Small pools

Dimensions:

H20-R2/H30-R2
Length: 370mm
Width: 170mm
Height: 155mm

One Year Back to Base Warranty
