TREVOLI SD-400A Submersible Pump

The SD series of submersible pumps are built for continuous 24 hour operation with a stainless steel exterior and double casing.

Specifications:

*400w ½ hp
*Flow Rate: 240LPM
*Pumping Height: 11 meters

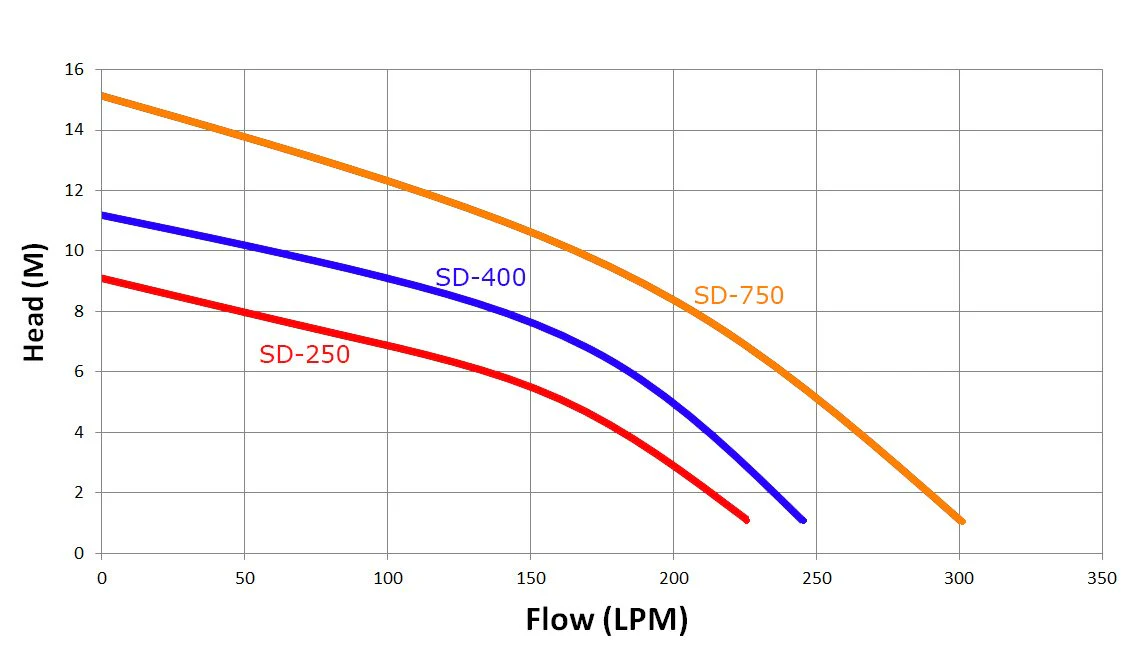

Head (metres) / Flow (lpm)

1.5M	3M	6M	9M
237Lpm	225Lpm	180Lpm	100Lpm

*Outlet Size: 2 inch/50mm
*Particle Size: 7mm
*Maximum Depth: 8 meters
*Weight: 12Kg
*Liquid Temperature: 0-40 Degrees
*Rated Speed: 2900/3450RPM
*Protection Class: IP68
*Dimensions:(L)183mm x (W)183mm x (H)348mm

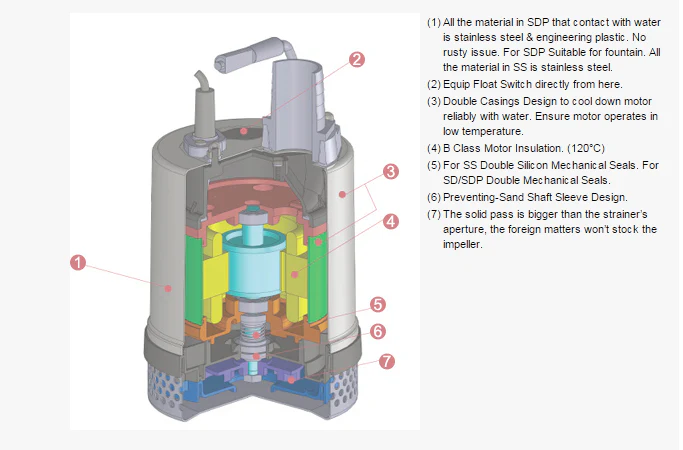

Features:

*B Class motor insulation
*Float switch controls turning pump on and off
*Stainless Steel Double Casing for Water Cools Motor
*Integrated stainless steel outer casing and strainer
*Cutting-edge designed double casing with circumferential liquid flow allows continuous full load operation even when not fully submerged.
*Double mechanical seals ensure great durability.

Cam-Kit: Option 2:
*20m x 50mm Layflat
*1x Type A Aluminum Camlock (Male grooved adapter plus female pipe thread)
*1x Type C Aluminum Camlock (Hose tail coupler female)

Applications:

*Industrial use
*Draining floods

SD Series Brochure

TWO YEAR WARRANTY
