TREVOLI - WP300-11 TWO SPEED SPA PUMP 2.2kW/0.45kW

WP300-11

The Trevoli WP Series Spa Pool pump range are robust and powerful Two speed centrifugal pumps with several motor sizes, designed to suit a large range of Spa pool sizes and applications. Robust, energy efficient and very quiet – the hallmarks of the Trevoli pool pump range.

Specifications:

* Motors:
  High Speed: 2.2kW
  Low Speed: 0.45kW
* Voltage: 230v
* Max Flowrate: 730 L/min (43,800 L/hour) and 330 L/min (19,800 L/hour)
* Total amps: 13 (10a plus 3a)
* Max head: 18M
* Inlet and Outlet diameter: 50mm
* Weight: 18.5 KG
* 3 pin plug not supplied, cable only

Features:

* Corrosion protected shell to prevent water directly contacting with motor
* Pump body and impeller in highly reinforced engineering grade plastic, motor shaft stainless steel, aluminium motor housing.
* IPX5 protection
* Insulation class F
* CE Authentication
* Twin motor efficiency
* Mechanical seal is ceramic stealite/ metalized carbon
* Rated for continuous use
* Very quiet operation

Working Conditions:
* Medium Temperature: 5-50°C
* Environmental Temperature: Up to 50°C

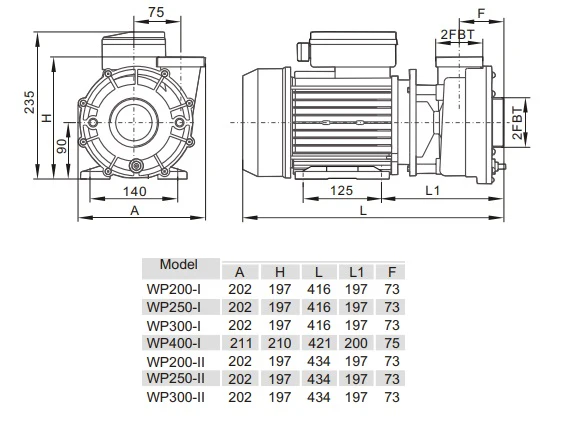

Dimensions:
* Length: 434mm
* Width: 202mm
* Height: 235mm

Applications:

* Spa Pool Pump suitable for 18-22 jets

TWO YEAR WARRANTY

Parts List
