Zenit-Bluebox Drainage Pump Station 60 Litre

Please contact us regarding product as we don't always carry this item in stock

802445

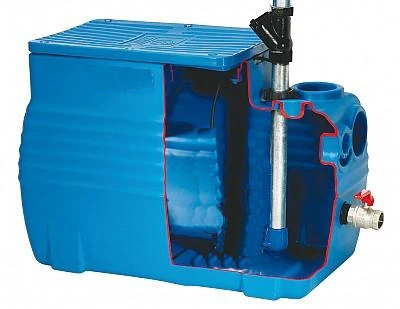

Blue box stations are suitable for collecting and lifting rain and waste water from washing machines, sinks and WC's in systems installed at a level lower than the sewer, in locations such as garages and basements.

The 60 litre model is compact and easy to install, making them ideal for civil and residential contexts. A ball check valve is also recommended.

Model	Watts	HP	Max Flow Rate (lpm)	Max Head (m)	Outlet (mm)	Suits Blue Box Size
DG-BLUE50	370	.5	270	6	40	60,90,150,250
DG-BLUE75	550	.75	420	11	40	60,90,150,250
DG-BLUE100	750	1	480	12	40	60,90,150,250

Specifications:

* Number of pumps possible = 1
* Operation temperature 40°C (90°C short time)
* 1 ½" (40mm) delivery pipe

Features:

* Walk-over cover
* O-ring seal between tank and cover
* Simplified inlet, outlet and air venting pipe connections with seal
* Integral lifting handles
* Fitted for emergency emptying using a tap
* Patented airtight cable gland allowing easy pump removal for any maintenance work
* The side fins, in the middle of the tank, guarantee an excellent grip if the unit is installed in-floor (refer to relevant manual)

Dimensions:

(Can be purchased with or without the pump)

12 Months Warranty

Bluebox Manual
