FilterMaster FMSC Series Chlorinators

Salt Chlorinators are an alternative means of sanitising your pool with chlorine using the process of electrolysis. The electrolysis is achieved by passing the salt water solution through an electrolytic cell which converts sodium chloride (salt) in the water into chlorine gas which, when dissolved in water becomes sodium hypochlorite (liquid Chlorine).

This Technology brings you:

Relaxation - Your Pool is Automatically disinfected.
Safety - Reduction in chlorine storage and handling.
Comfort - Clean, Safe and Crystal-clear water
Health and Wellbeing - Therapeutic saltwater does not irritate eyes or skin.

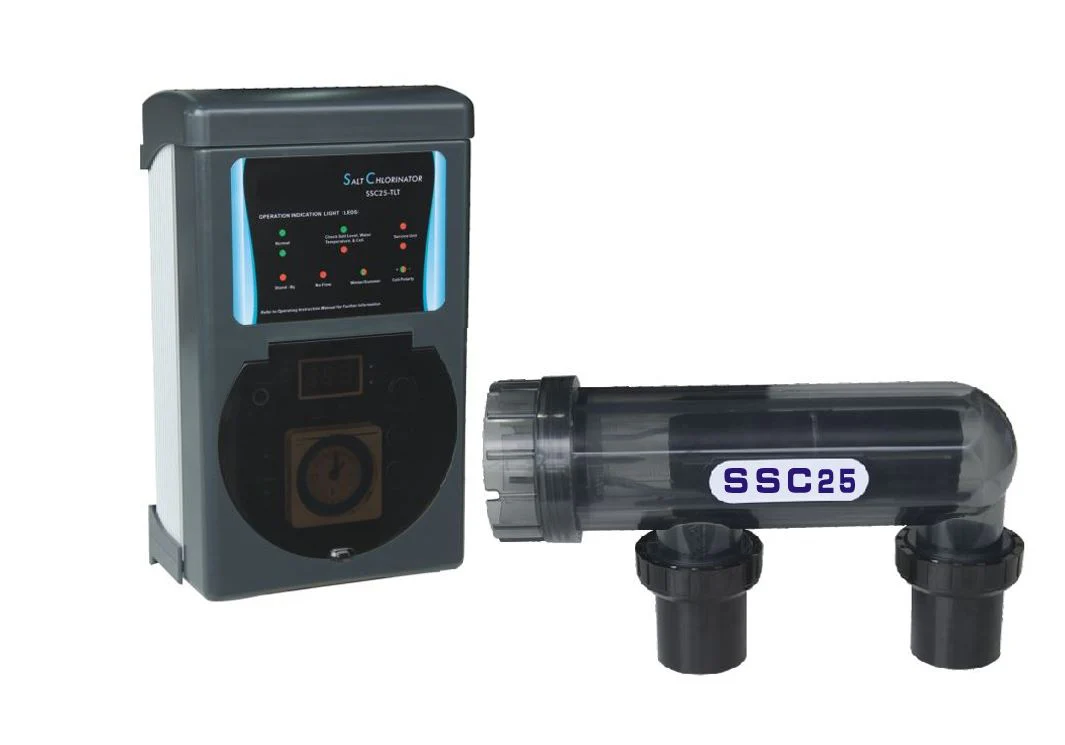

Salt Cell

The SSC's salt cell consists of a series of titanium electrodes with opposite changes. SSC's clear cell housing allows visual inspection of the cell plates and enables monitoring of chlorine production.

Power Supply

Power Supply enclosed in a UV & weatherproof enclosure
Unit runs cool through design & innovation.
Displays are clear and easy to understand.
SImple installation & easy to operate.
Time clock complete with battery backup

Features:

Easy to Read Digital Display.
Simple to Switch On or Switch to Automatic Operation.
Clear LED Operation.
Complete Output Control.
Full Diagnostic Display.
Large Lock Ring for easy access.
Durable UV stabilised engineered cell housing with a maximum working pressure of 4 bar.
Efficient Hydraulic design.
Brass pin quick connectors.
Optimised design to maximise cell life.
50mm Connection to Pipe work (Does include 40mm connectors)

When Selecting the correct Chlorinator, there are a few factors to consider:

Size of the pool.
Bather Load.
Size & turnover rate of filtration system.
Climate conditions.

Model	Cell Output (g/hr)	Pool Size	Salt Level	Description
SSC15-T	15	60,000L	4000PPM	With Time Clock
SSC25-T	25	85,000L	4000PPM	With Time Clock
SSC50-T	45	150,000L	4000PPM	With Time Clock

*2 YEAR WARRANTY OF BOTH CELL AND POWER SUPPLY

Pool Chlorinators

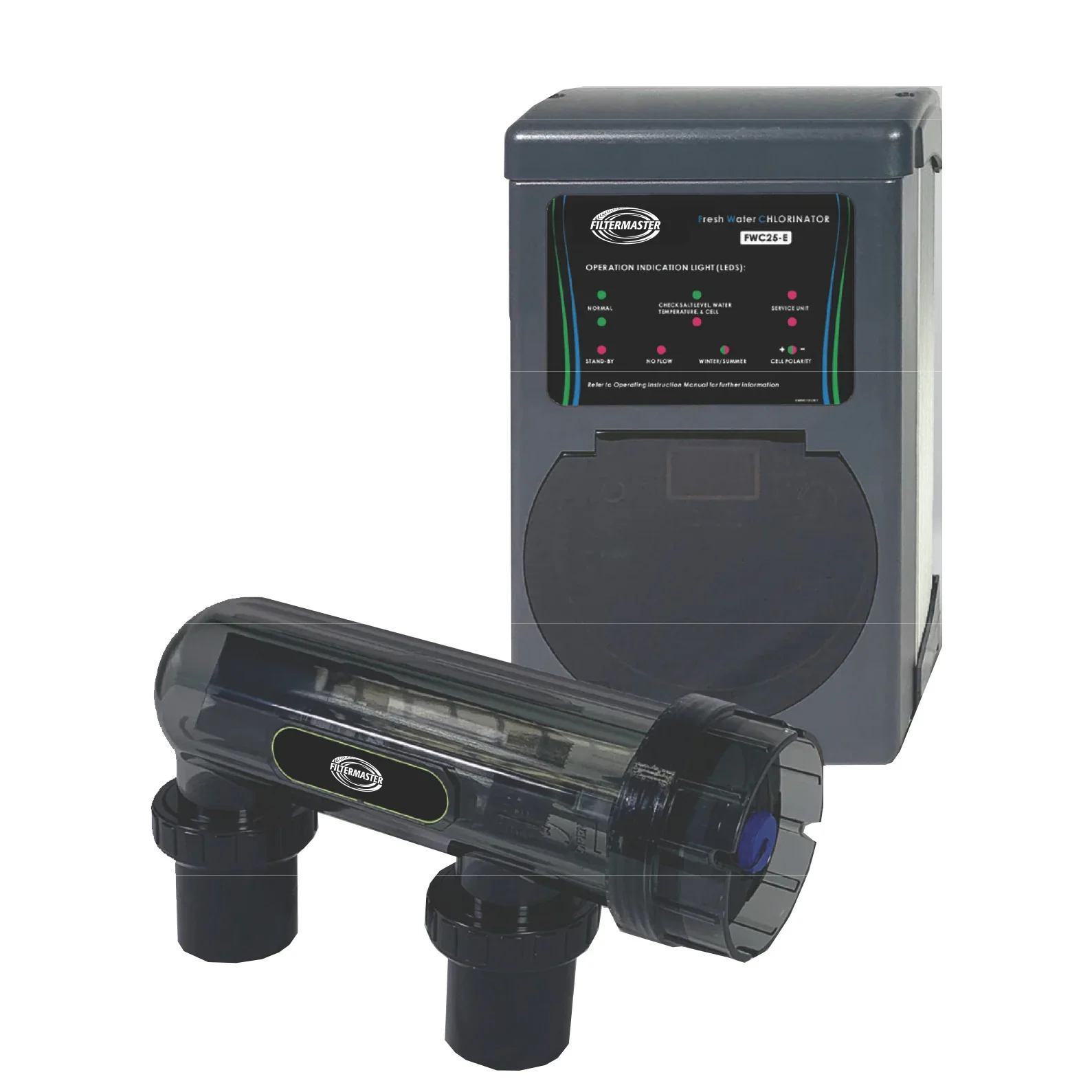

FilterMaster Fresh Water Pool Purifier
