DAB-DIVERTRON900-SUB-PUMP - Submersible Pump
Please contact us regarding product as we don't always carry this item in stock
Available in two models
The pump is a light and compact high head submersible clean water automatic pressure system pump supplied wired and ready to install. The pump includes an electronic automatic restart, built in electronic pressure control designed to automatically start and stop the pump when water is used.
Note a pressure tank will increase the life of this pump and is highly recommended
Specifications:
* Power: 0.56kW

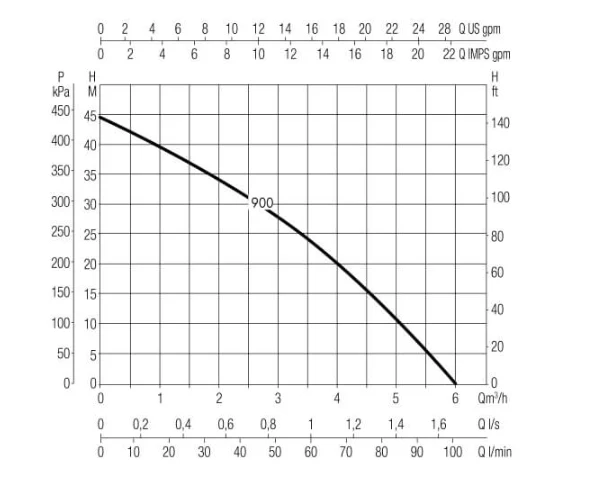

* Max Head: 45 Metres
* Max Flow rate: 100lpm.
* Voltage: 240v
* Frequency: 50Hz
* Amps: 4.2
* Maximum submergence: 12m
* Outlet: 25mm/20mm
Applications:
* Household pressure systems
* Garden & Sprinklers
* Any clear water application requiring high pressure
Features:
* Built-in electronic automatic pressure switch
* 900A model supplied with float switch
* 900 model supplied with built in control valve
* 900X model supplied with suction ring outlet
* Equipped with dry-run protection
* Rated for Continuous use
* Built-in non return valve
* Easy to use
* High reliability
* Supplied with 10 m power cord
* 2 Year Warranty
* Brochure
Technical Features:
* IP 68
* Insulation class: F
* Net weight: 11.0 kg

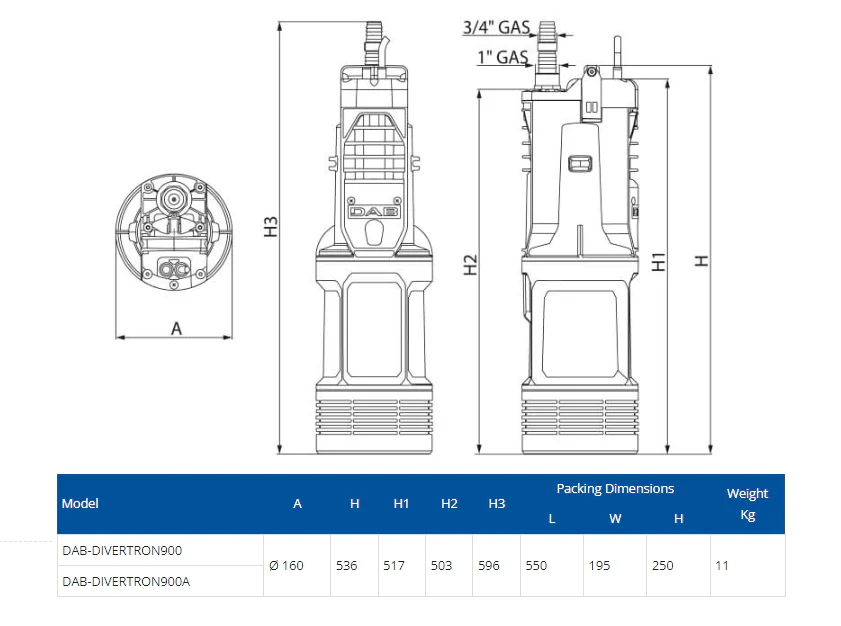

* Dimensions: 536H x 250L x 160W (mm)
* Liquid: Clean water temperature range: 2 – 35 °C
* Maximum ambient temperature: 40 °C
* Pump body: Technopolymer
* Impeller: Technopolymer/AISI 304 Technopolymer
* Diffuser: Technopolymer
* O-Ring: EPDM
* Base: Technopolymer
* Motor shaft: Stainless Steel AISI 416
* Motor top body: Stainless Steel AISI 304

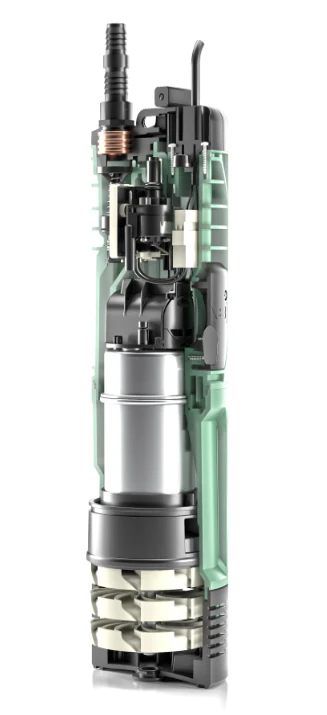

The Technopolymer impellers are based on in-depth research into fluid dynamics to increase performance: higher efficiency with lower energy consumption.
The motor has been redesigned to reduce consumption. But also to improve performance.
We have applied a mechanical sealing system that offers two advantages: greater strength and durability, but also greater efficiency, thanks to the combined action with the new hydraulics.
The new retractable handle makes it easier to move the pump, while the hook is designed to use a cord when the pump is lowered into a tank or well.
The integrated electronic card manages starting and stopping of the pump automatically in relation to the water demand, without the need to install an external controller. This prevents dry running of the pump in the event of a prolonged shortage of water. Easier to install, and easier and safer to use
The non-return valve ensures quick and safe initial installation, allowing immediate priming.
The capacitor housing is designed to be replaced quickly without the need to remove the pump housing.
