DAB JINOX-Domestic Pressure Pump Series Self Priming Stainless Steel Jet Pumps

Please contact us regarding product as we don't always carry this item in stock

A self-priming centrifugal pump with excellent suction capacity even when there are air bubbles. Particularly suitable for water supply in domestic installations, small scale agriculture, gardening and wherever self- priming operation is necessary.

Specifications:

Model	kW	Hp	Pumping Height	Pressure	Flow Rate	Taps	Inlet/Outlet
JINOX82m	0.6	0.8	47m Head	66 psi	60 Lpm	6	1" 25mm BSP

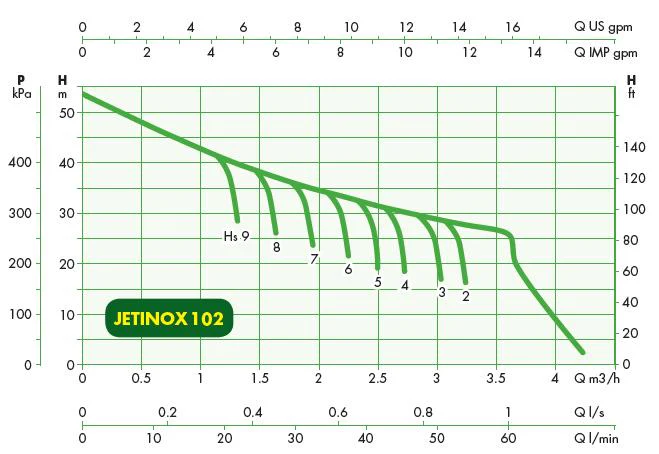

JINOX102m	.75	1.0	54m Head	76 psi	60 Lpm	6	1" 25mm BSP

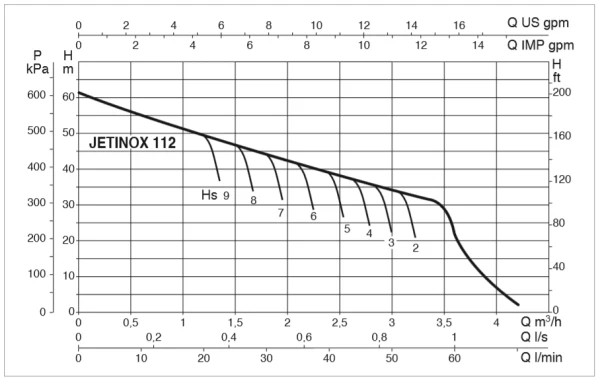

JINOX112m	1.0	1.36	61m Head	86 psi	60 Lpm	6	1" 25mm BSP

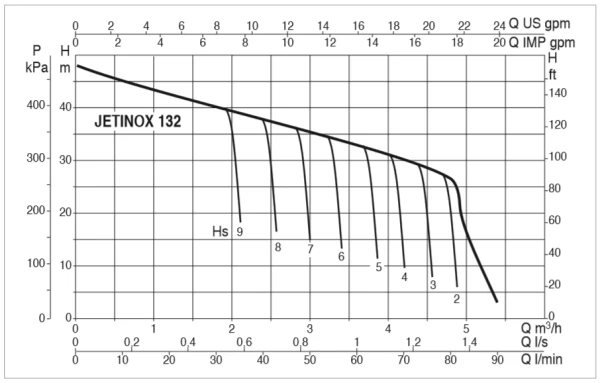

JINOX132m	1.0	1.36	48m Head	68 psi	80 Lpm	8	1" 25mm BSP

* 230v
* Single Phase
*Suction lift 9 metres
*Inlet/Outlet: 25mm BSP

Explanations of Controller Options

Applications:

* Pressure boosting
* Irrigation
* Wash down applications
* Designed for pumping from tanks, rivers and dams. These pumps are very reliable in the toughest of environments.

Features:

* Liquid temperature range:
-from 0°c to +35°C for domestic use
-from 0°C to +40°C for other use
* Pumped liquid characteristics: clean , free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral.
* Maximum ambient temperature: +40°C
* Maximum working pressure:
-6 bar (600 kPa) for Jet and Jetcom
-8 bar (800 kPa) for Jetinox
* Protection level: IP 44 (IP 55 terminal board protection
* Insulation class: F.

Materials:

* Stainless Steel pump body
* Motor support in cast iron
* Technopolymer impeller, diffuser, Venturi tube and sand guard.
* Stainless steel adjustment rings.
* Carbon/ceramic mechanical seal.
* Asynchronous motor closed and cooled by external ventilation
* Built-in thermal and current overload protection and a capacitor permanently on in the single-phase version.

Recommendation:  A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu.
A free three-way tee is provided with any pump and pressure tank combination.

2 Year Back to Base Warranty
