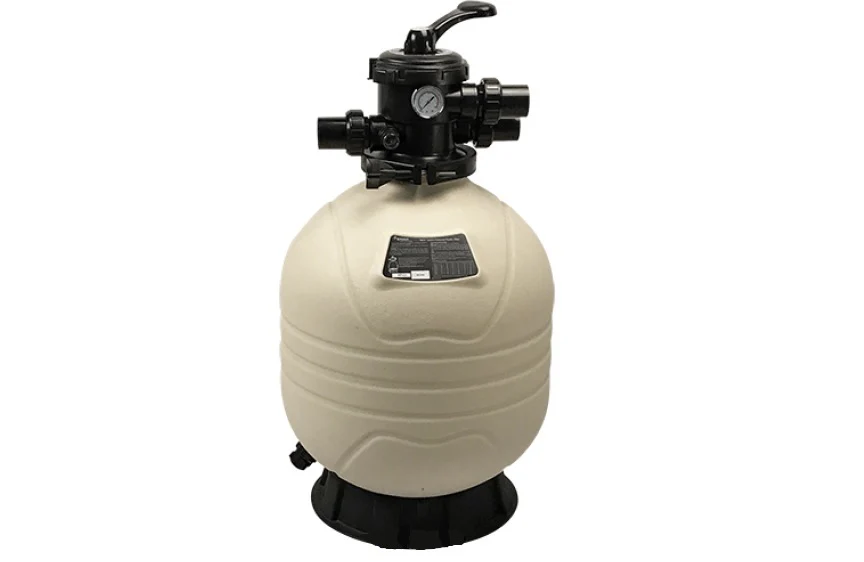

Emaux Max Series Swimming Pool Sand Filter - MFV Series

USER - FRIENDLY AND INNOVATIVE DESIGN

Emaux’s innovative design and advanced technology offer superior filtration performance and crystal clear water. Max Series filters are blown at one-piece with high-density polyethylene for its heavy-duty performance and reliability.

Specifications:

Model	Filter Area (m2)	Valve Connection	Max Flow Rate (LPM)	Sand (KG)	Pool Size (Up to)
MFV17	0.14	40 mm	117	40	35,000L
MFV20	0.20	40 mm	167	70	45,000L
MFV24	0.28	50 mm	233	125	65,000L
MFV27	0.36	50 mm	300	185	75,000L
MFV31	0.47	50 mm	508	320	150,000L

Features:

*Tank Material: HDPE
*Max operating pressure 40 psi / 2.8 bar
*Max temperature of 50°C (122°F)
*Universal standard of union connection is provided
*Suggested size of media : 0.5-0.8mm
*PVC & ABS lateral is provided
*Pressure gauge is provided
*Equipped with 6-way clamp style multiport valve (1.5”MPV07, 2”MPV08)

Applications:

*For residential and semi-commercial pools

Brochure
Manual

 Warranty

*Tank - FIVE YEAR WARRANTY
*Valve - ONE YEAR WARRANTY
