Leisuretime II Fibreglass Sand Filter

Please contact us regarding product as we don't always carry this item in stock

The Leisuretime II Fibreglass Sand Filter is the perfect high performance sand filter. It’s incredibly simple to operate and maintain, and it’s built with long-term reliability in mind. Plus, its highly efficient design provides all the clean, crystal clear water your pool requires year after year. Here’s how.

Pool water is routed through the sand-filled pressure vessel. The sand traps particles so small they are undetectable to the naked eye. Over time, dirt accumulates in the spaces between the sand particles, causing the pressure in the vessel to rise. This signals you to “backwash” the filter. Simply reverse the water flow and “knock out” the dirt.

Pool filter operation doesn’t come any easier. The multi-port valve puts all filter functions right at your fingertips—just rotate the handle to the desired position and the Leisuretime filter does the rest for sure and simple operation.

Specifications:

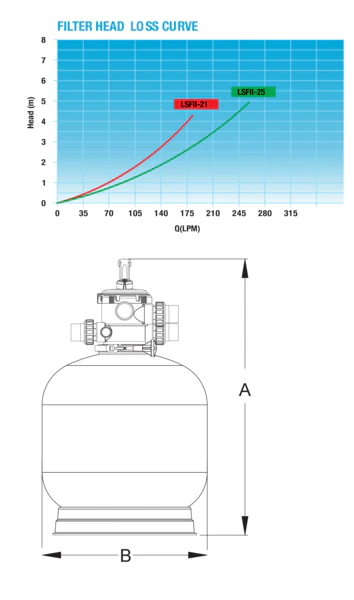

Model	Size	Pool Size (L)	Connection	Filter Area	Sand Required	Maximum Flow Rate	Minimum Backwash Flow	Height (mm)	Width (mm)
715‑LSFII‑21‑40	20	40,000	40mm	0.20 m2	90kg	190LPM	120LPM	875	535
715‑LSFII‑25‑40	20	40-60,000	50mm	0.30 m2	160kg	260LPM	180LPM	980	635
715‑LSFII‑25‑50	25	40-60,000	50mm	0.30 m2	160kg	280LPM	180LPM	985	635
715‑LSFII‑28‑50	28	50-70,000	50mm	0.38 m2	200kg	350LPM	230LPM	1050	723
715‑LSFII‑32‑50	32	60-80,000	50mm	0.50 m2	300kg	450LPM	270LPM	1200	800

Features:

*Spun-woven fibreglass construction for exceptional strength, chemical resistance and long life.
*UV resistant tank.
*Stainless steel clamp for corrosion resistance and allows 360 degree rotation of multi-port valve to simplify installation.
*Top diffuser ensures even distribution of water over the top of the sand bed.
*Top mount 6-function 1½” or 2” multi-port valve features a pressure gauge, sight glass and manual air relief for optimum filtration efficiency.
*Large capacity 28” models is available with a 2” valve.
*Internal design ensures that water is exposed to maximum sand surface area for superior filtration performance and efficient backwashing.

Technical Features:

*Max working pressure: 250KPA
*Max working/ambient temperature: 50ºC
*Max water temperature: 43ºC
*Silica sand size: 0.5 – 0.8mm

Materials:

*Filter body: Spun woven fibreglass
*Internal liner: HDPE
*Base: PP
*Clamp band: 304 SS
*Laterals/Hub: PVC/ABS composite
*Stem pipe: PVC
*MPV: ABS
*O Rings: NBR

10 year warranty is pro-rata. 100% replacement value from 0-5 years from purchase, 50% replacement value from 5-10 years from purchase date. This applies to sand filter tank. MPV, and laterals are warranted for 1 year only.
