Trevoli MVH-10A High Pressure Submersible Pump

The Trevoli MVH-10A is a submersible high head pump designed for drip line applications, water transfer or domestic household use with an automatic controller. Fitted with PPO impellers & diffusers with a stainless steel strainer.

Specifications:

* Voltage: 220-240v
* Wattage: 600 watts
* HP: 0.75
* Max Flow Rate: 105 Litres per minute
* Max Head Height: 32 metres
* Single Phase
* Amps: 3.7
* Outlet: 1"/25mm
* Max solid: 3mm

Technical Features:

* IP68
* 50 Hz
* Capactior: 18uF
* Insulation Class: B
* Liquid Temperature: 0-35 degrees
* Maximum Temperature: 40 degrees
* Weight: 12kg

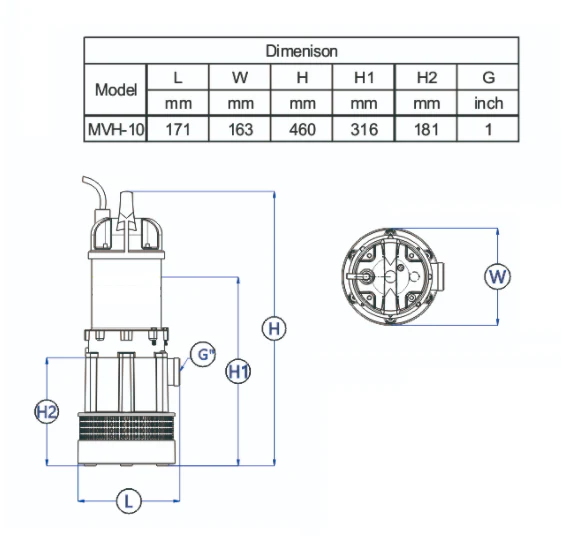

* Physical Dimensions: 460(H) 171(L) 163(W)- Not including Float

* Immersion Depth: 7m

Features:

* 10 metre Cable
* Includes Float Switch
* Stainless Steel upper body
* Heavy Duty plastic bottom body and handle
* Double mechanical seal (Carbon ceramic) in oil bath
* In built s/steel Strainer
* High Quality PPO stages and impellers
* S/steel Shaft
* Built in thermal overload protection

Applications:

* Household pressure systems & domestic applications (with optional automatic press control)
* Transferring rain water/clean water
* Drip line systems
* Drainage and sump dispersal

2 Year Warranty
