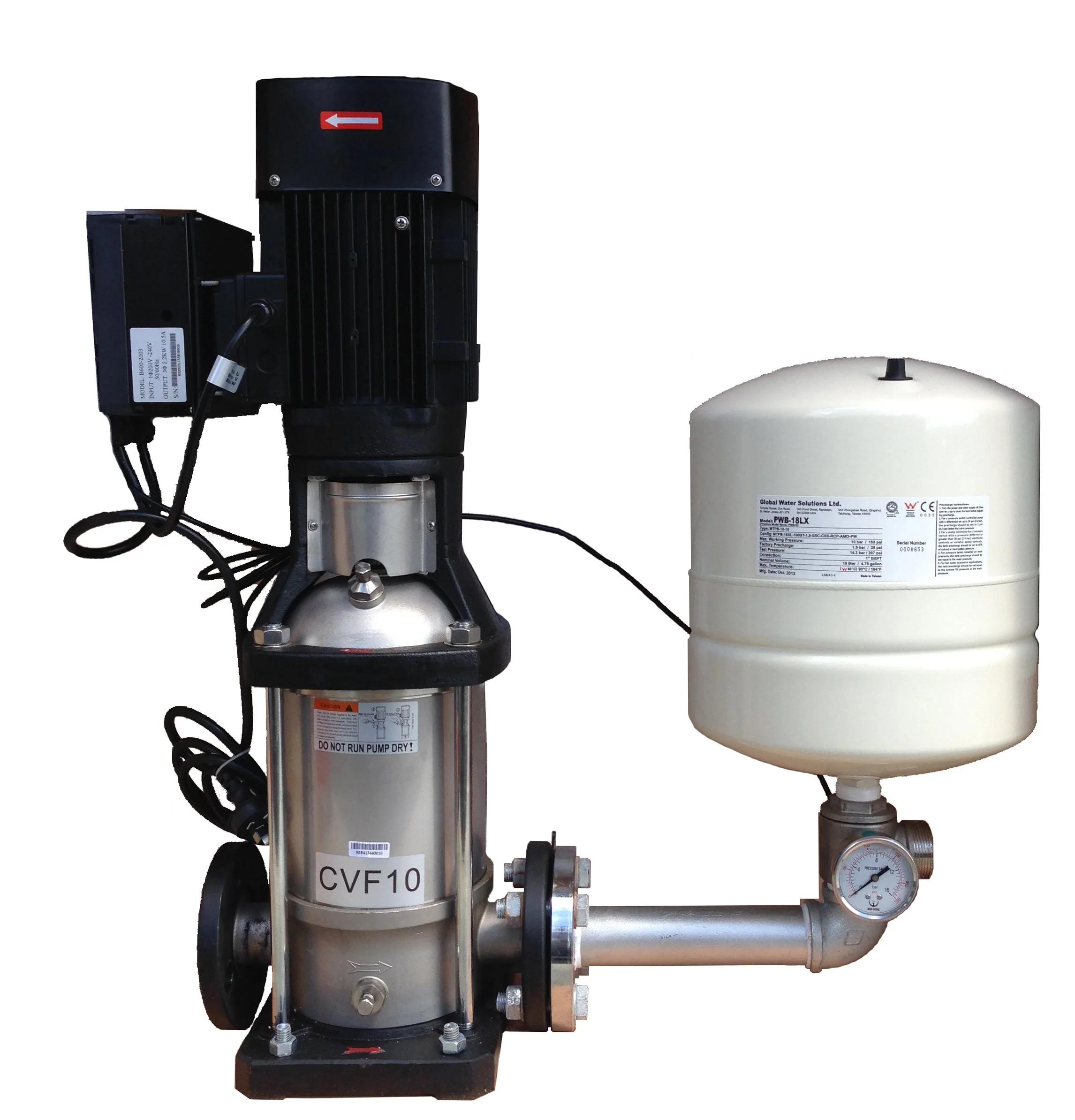

TREVOLI CVF10-6 Stainless Steel Vertical Multistage Water Pump for Large Home/ Farm with Variable Speed Controller

CVF10-6VP, CVF10-6VTP

This pump is ideal for domestic or farm water supply, providing mains pressure for a large single or multi-level home and farms. Able to support up to 20 taps running at one time. Fitted with a variable speed constant pressure controller and 18L pressure tank.



Specifications:

*Available in single and three phase (see drop-down menu)

*Power -2200W - 3 Horsepower
*Single phase with standard NZ 3 pin plug
*Max Flow rate: At 233 litres per minute (at 28m)
*Max Pressure: 90 psi
*Max discharge head: 63 metres
*Max suction 1.5m
*Inlet size: 1.5 inch BSP (40mm)
*Outlet size: 1.5 inch BSP (40mm)
*Built in thermal overload protection
*Insulation class F
*IP55 Protection
*Rated for Continuous duty
*Liquid temperature range: -20 - 104 deg C
*Max operating pressure: 16 bar
*Length: 790mm (including outlet pipework with pressure tank attached)
*Height: 770mm
*Weight: 50 Kg (pump only)

Common Applications:

*Domestic water supply for large / very large homes
*Farm irrigation
*General water transfer systems
*Industrial/commercial applications

Features:

*Fitted with a variable speed constant pressure controller
*Delivery pressure can be easily adjusted at any time
*Controller provides soft starts to avoid water hammer and related problems
*Pump motor operates at varying speed based on actual demand saving up to 50% electricity usage
*Run Dry Protection
*Corrosion resistant stainless steel construction
*Stainless steel pump housing
*Stainless steel motor shaft
*Stainless steel impeller and intermediate chambers
*Build in thermal overload protection
*Quiet operation

2 Year back to base warranty



CVF Series Brochure
