DAB VA55-130-3 Speed Circulation Pump

Please contact us regarding product as we don't always carry this item in stock

702735

Suitable for circulating hot water in closed and pressurised or open tank centralised home heating and air conditioning systems. Also suitable for solar power systems.

Specifications:

* Power: 70 Watt
* Max Flow rate: 65 LPM
* 3900 Litres per hour
* Max delivery height: 5.4 metres
* Centre distance: 130mm
* Inlet/Outlet: 40mm
* Materials: Cast Iron
* Protection level: IP 44
* Insulating class: F
* Cable grommet: PG 11
* Standard voltage: single-phase 230v/50 Hz

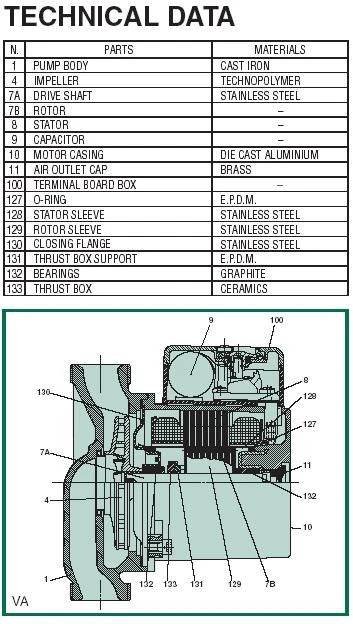

Technical Features:

* Circulator with threaded ports, pump body in cast iron
* Motor shaft: Stainless steel, graphite bushings, ceramic thrust bearing
* Motor self-protected for resistance (no power leads included)
* Resistant also in the case of dry running
* Operation at three speeds

Features:

* Rugged construction
* Pump safety
* Increased lifespan
* Flexible and silent-running
* Solid structure
* No need for overload protection
* Prevents damage
* Suitable for all system characteristics

Options Available:

This pump comes with one and a half inch ports (inlet and outlet). Unions are available to reduce the inlet and outlet in size to either 1 inch or 3/4 inch. Unions come in either cast iron or brass depending on your preference.

DAB	GRUNDFOS	KSB	SALMSON	WILO
VA 25/130 1/2	UPS 15-30/130	RIO C 15-25/130	NYL 33-15	STAR-RS 15/2
VA 25/130	UPS 25-30/130	RIO C 25-25/130	NYL 33-25	STAR-RS  25/2
VA 35/130 1/2	UPS 15-40/130	RIO C 15-40/130	NYL 43-15	STAR-RS  15/4
VA 35/130	UPS 25-40/130	RIO C 25-40/130	NYL 43-25	STAR-RS  25/4
VA 55/130 1/2	UPS 15-50/130	RIO C 15-60/130	NYL 53-15	STAR-RS 15/6
VA 55/130	UPS 25-50/130	RIO C 25-60/130	NYL 53-25	STAR-RS 25/6
VA 65/130 1/2	UPS 15-60/130	N/A	NYL 63-15	STAR-RS 15/6
VA65/130	UPS 25-60/130	N/A	NYL 36-25	STAR-RS  26/6



2 Year Back to Base Warranty
