Trevoli BLC Series- Stainless Steel, Single Stage Centrifugal Pumps

The Trevoli BLC Circulation pump series are a horizontal single stage stainless steel centrifugal pump design. Ideal for water transfer and circulation for a variety of applications including irrigation, vat washing, aquaculture and for situations requiring varying temperatures.

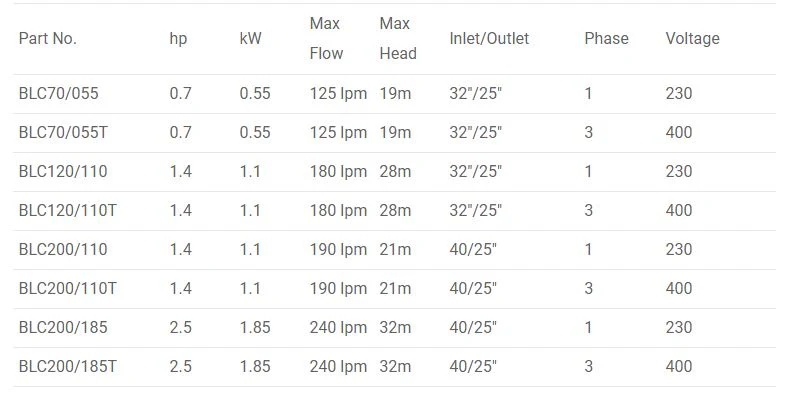

Specifications:

Part No.	hp	kW	Max Flow	Max Head	Inlet/Outlet	Phase	Voltage
BLC70/055	0.7	0.55	125 lpm	19m	32"/25"	1	230
BLC70/055T	0.7	0.55	125 lpm	19m	32"/25"	3	400
BLC120/110	1.4	1.1	180 lpm	28m	32"/25"	1	230
BLC120/110T	1.4	1.1	180 lpm	28m	32"/25"	3	400
BLC200/110	1.4	1.1	190 lpm	21m	40/25"	1	230
BLC200/110T	1.4	1.1	190 lpm	21m	40/25"	3	400
BLC200/185	2.5	1.85	240 lpm	32m	40/25"	1	230
BLC200/185T	2.5	1.85	240 lpm	32m	40/25"	3	400

Features:

*Rated for continuous use
*Liquid Type: Clean Water
*Temperature Range: -20°C to +104°C
*Maximum operating pressure: 8 bar
*Thermal Overload Protection
*Corrosion resistant

Motor Features:

*Insulation class: Class F
*Protection class: IP55
*Thermal Over protection
*Mechanical shaft seal
*Pump support plate
*Pump Body: Stainless Steel 304
*Impeller: Stainless Steel 304
*O rings: Nitrile
*Power Cable: 2m cable H07 3GI.

Applications:

*Water circulation
*Washing cars
*Tank Emptying
*Gardening
*Fountains
*Irrigation
*Vat washing
*Calf Milk

 TWO YEAR WARRANTY
