GRUNDFOS UPS 32-100 N 180 3 Speed Stainless Steel Circulation Pump

Please contact us regarding product as we don't always carry this item in stock

Unions not included*
Not wired

Grundfos UPS(N) pumps are the ideal choice for a wide range of domestic and commercial applications. The UPS(N) pumps are 3-speed wet rotor circulators and come in a wide range of materials and sizes. They feature an integrated pump and motor design ensuring greater ease of installation and durability. Maintenance free and whisper-quiet, these pumps are ideal for a variety of domestic and commercial heating and cooling systems.

Specifications:

* Wattage: 345w
* Flow Rate: 180 LPM
* Maximum Head: 9.5m
* Inlet/Outlet: 50mm
* Port to Port: 180mm
* Amps (In Speed 3): 1.52
* Three Speeds
* Voltage: 220-240v
* 50hz
* Ambient Temperature: 0-40 degrees
* S/Steel Liquid Temperature: 2 to 110 degrees
* System Pressure: Maximum 10 Bar
* Relative air humidity: 95 %
* Enclosure class: IP44
* Insulation class: F
* Sound pressure level: 43db

Features:

* Stainless Steel Body
* Energy efficient
* A speed switch on the motor allows the pump to be adjusted to the needs of the application, improving pump efficiency and reducing energy consumption.
* Robust design
* The UPS is made of materials that ensure excellent corrosion resistance.
* Designed for open systems, the UPS(N) is constructed from quality stainless steel with a high grade composite impeller.
* Quiet operation
* The canned motor provides an operating noise level at less than 43 decibels, the UPS is extremely quiet.
* Easy installation
* The UPS is a compact, inline circulator pump, making it suitable for most installations.

Applications:

*Circulating hot or cold water in open or closed systems.

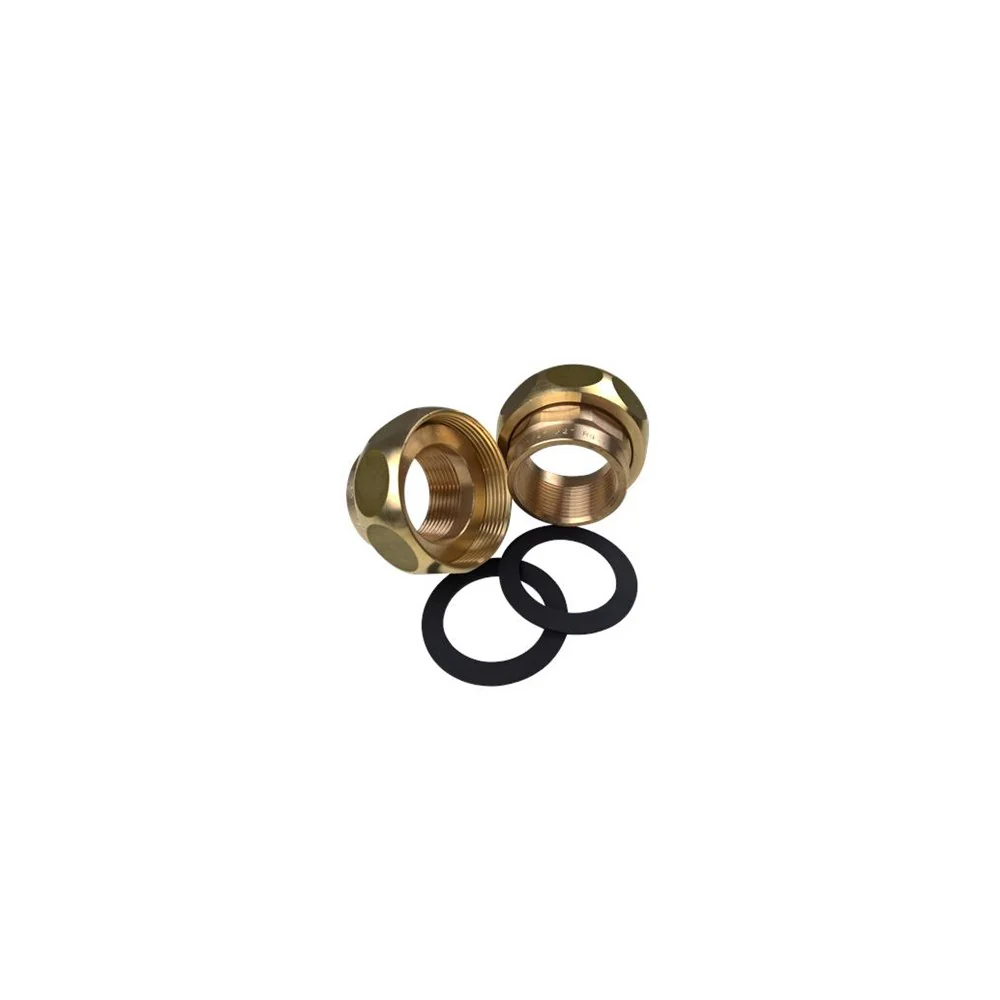

Unions:



2 Year Back to Base Warranty
