Grundfos SBA Submersible Domestic Booster Pump

Please contact us regarding product as we don't always carry this item in stock

The Grundfos SBA pump is a submersible booster pump designed for the pumping of clean water for domestic and rainwater applications. The SBA submersible pump is silent when submerged and therefore a noiseless alternative to surface mounted pumps. The SBA pump is built of high quality composite and stainless steel materials that are resistant to corrosion. The SBA is ideal for operation in a well or ground tanks. Furthermore, the pump features a flow switch which ensures the user a convenient experience with automatic start/ stop operation and dry running protection of the pump. The SBA includes an integral control unit, eliminating the need for an external pump controller. With SBA it is literally a matter of plug-and-pump.

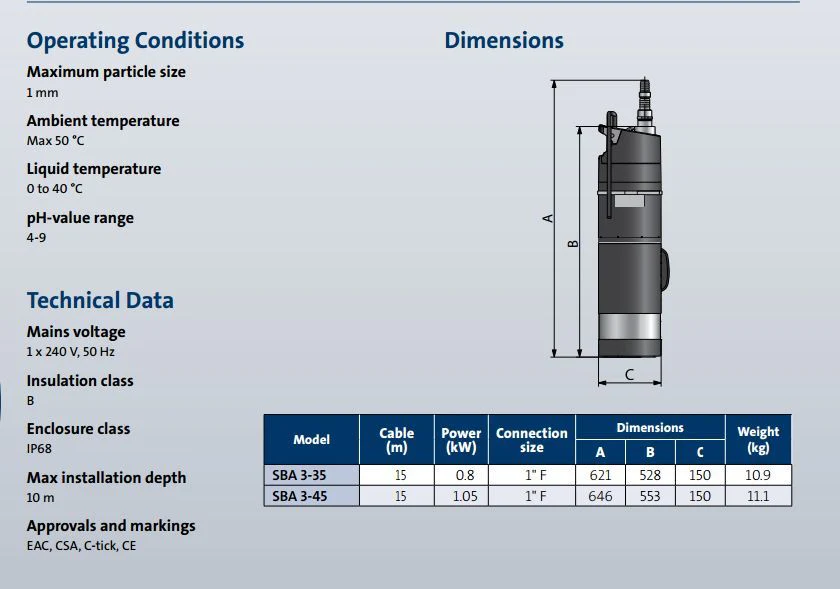

Specifications:

Model	kW	HP	Pumping Height	Flow Rate	Inlet/Outlet
SBA 3-35 A	0.8	1	34m	110 LPM	25mm/1"
SBA 3-45 A	1.0	1.3	44m	110 LPM	25mm/1"

*240 V
*Single Phase
*Watts: 800-1050
*50 Hz
*Insulation class B
*Enclosure class IP68 Max
*Maximum particle size- 1 mm
*Ambient temperature Max 50 °C
*Liquid temperature 0 to 40 °C
*pH-value range 4-9
* Cable: 15m

Features

*Noiseless operation-The SBA pump emits no noise when submerged and is therefore a noiseless alternative to non-submersible pumps.
*Robust design- The SBA pump is built of composite and stainless steel materials which are resistant to corrosion.
*Integrated protection-SBA features integrated float switch for dry-running protection.
*Automatic restart SBA with float switch automatically restarts when water is added.
*Run Dry protection- Built-in thermal protection immediately stops the pump if it overheats.
*Grundfos float switch prevents air from entering the system as a result of dry running.

Applications

*Above or below ground water tanks
* Small, medium, large homes
* Water transfer



2 Year Back to Base Warranty
