TREVOLI - CMB8-72VP - Stainless Steel Multistage Water Pump for Large Home/ Farm with Variable Speed Controller

CMB8-72VP
This pump is ideal for domestic or farm water supply, providing mains pressure for a large single or multi-level homes and farms. Able to support up to 15 taps running at one time. Fitted with a variable speed constant pressure controller and 18L pressure tank.

Specifications:

*Power -2200W - 3 Horsepower
*Single phase with standard NZ 3 pin plug

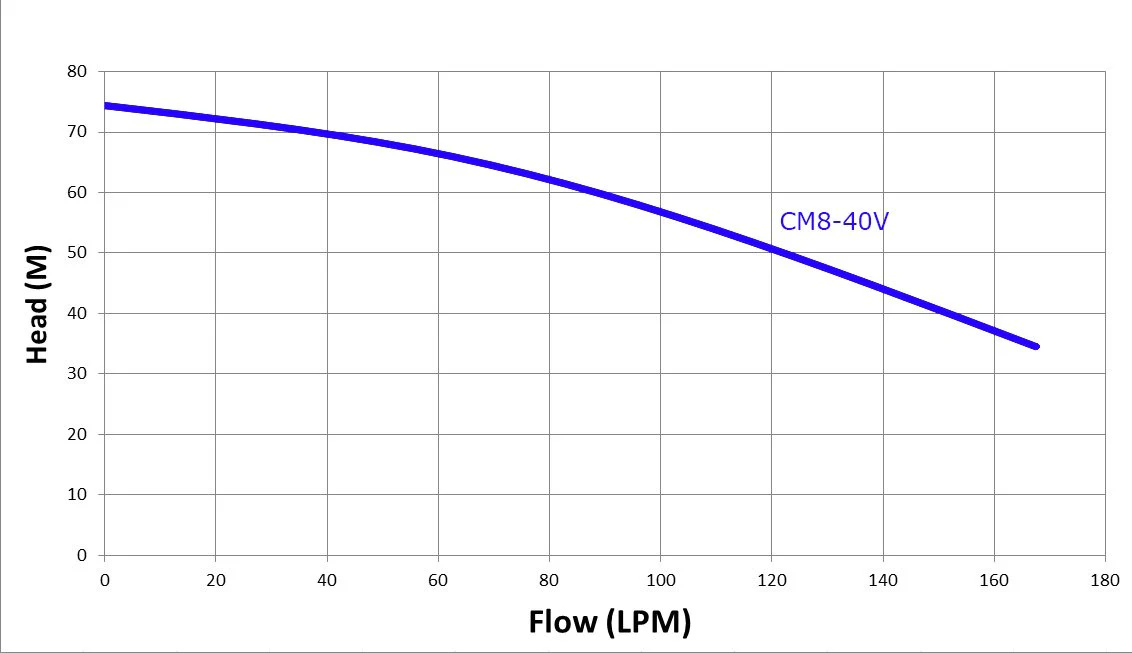

*Max Flow rate: 166 litres per minute
*Max Pressure: 102 psi
*Max discharge head: 72 metres
*Max suction 1.5m
*Inlet size: 1½ inch BSP (40mm)
*Outlet size: 1½ inch BSP (40mm)
*Built in thermal overload protection
*Insulation class F
*Rated for Continuous duty
*Liquid temperature range: -20 - 70 deg C
*Max operating pressure: 10 bar
*Length: 450mm
*Height (including pressure tank): 760mm



Common Applications:

*Water supply for large / very large homes
*Farm irrigation
*General water transfer systems
*Industrial/commercial applications
*Domestic Household Pumps



Features:

*Fitted with a variable speed constant pressure controller (IP54 rated)
*Delivery pressure can be easily adjusted at any time
*Controller provides soft starts to avoid water hammer and related problems
*Pump motor operates at varying speed based on actual demand saving up to 50% electricity usage
*Run Dry Protection
*Corrosion resistant stainless steel construction
*Stainless steel pump housing, motor shaft, impellor and intermediate chambers
*Build in thermal overload protection
*Quiet operation

Two Year Back to Base Warranty
