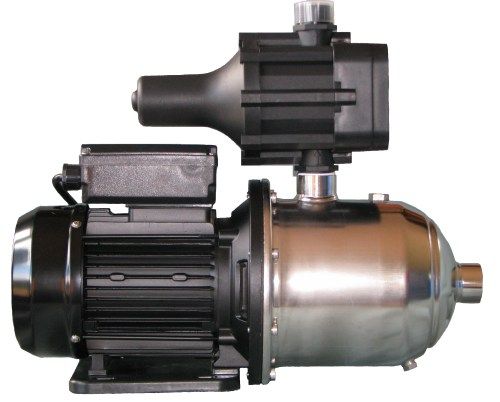

TREVOLI CMS23E - Stainless Steel Multistage Pump for Small Home

This pump is ideal for domestic water supply, providing mains type pressure for a medium to large single or double level home and can support up to 5 taps running at one time. Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow) Starts automatically when the tap is turned on and Stops automatically when the last tap is turned off, Operating constantly from low flow to full flow.

Recommendation:  A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu.
A free three-way tee is provided with any pump and pressure tank combination.

Explanations of Controller Options

Specifications:

*Power -550W - .75 Horsepower
*Single phase with standard NZ 3 pin plug
*Max Flow rate: 70 Litres per minute
*Max Pressure: 48 psi
*Self Priming: 4m Suction
*Max discharge head: 34 metres
*Inlet/Outlet sizes: 1 inch BSP (25mm)
*Built in thermal overload protection
*Insulation class B
*IP55 Protection
*Rated for Continuous duty
*Liquid temperature range: 5 - 60 deg C
*Max operating pressure: 6 bar
*Length: 426mm
*Height: 217mm (Excluding controller)
*Width: 191mm

Common Applications:

*Water supply for large homes
*General water transfer systems
* Domestic Household Pumps

Features:

* Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow)
* Starts automatically when the tap is turned on (and pressure drops to 1.5 bar)
* Operates constantly from low flow to full flow
* Stops automatically when the last tap is turned off
* Run Dry Protection
* Corrosion resistant stainless steel construction
* Stainless steel pump housing
* Stainless steel motor shaft
* Built in thermal overload protection

Supports 5 taps running at once (Based on 10 Litres per minute 2bar)

Note: A coarse inlet strainer/filter and non-return valve are required to install this pump.

2 Year Warranty
