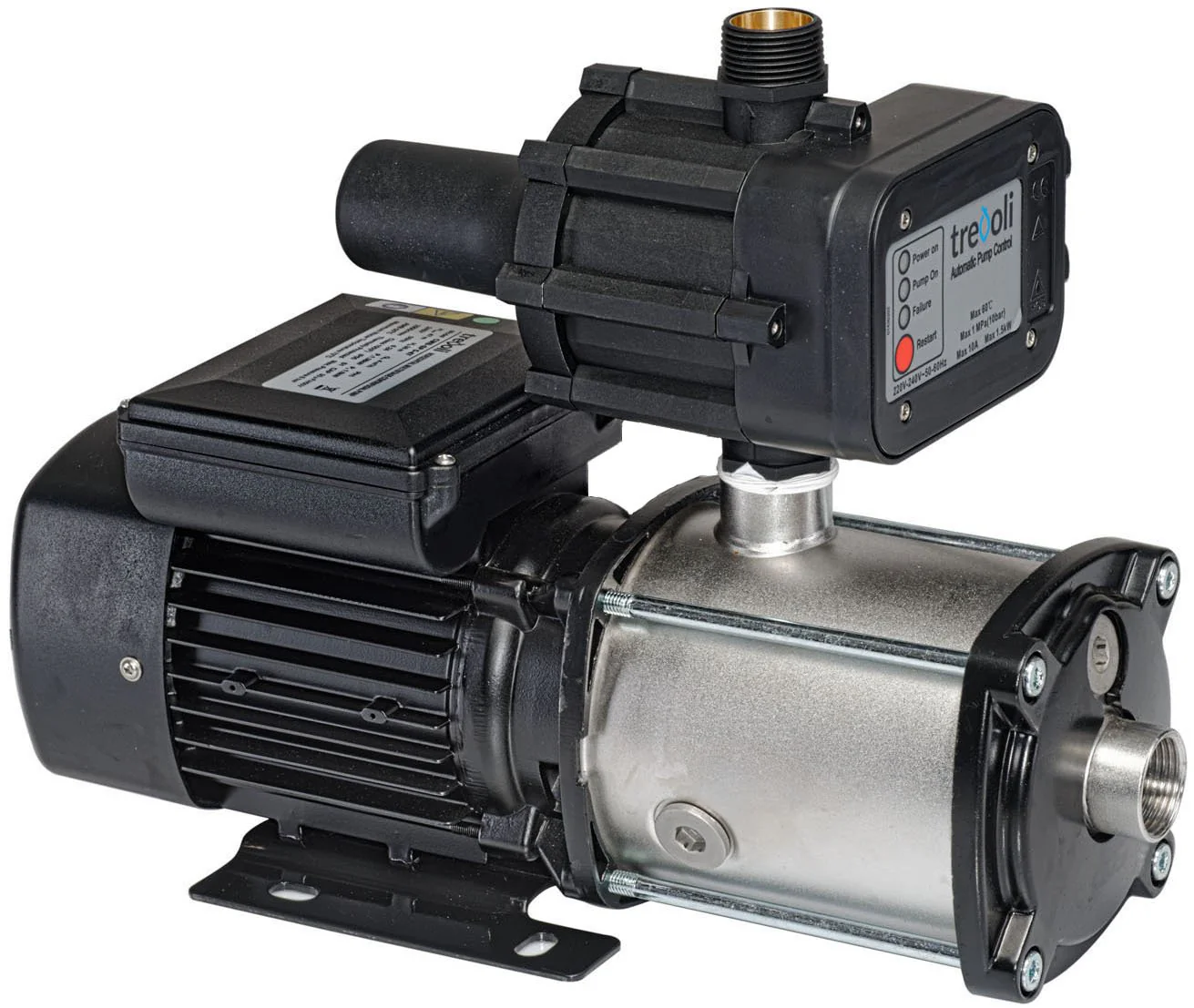

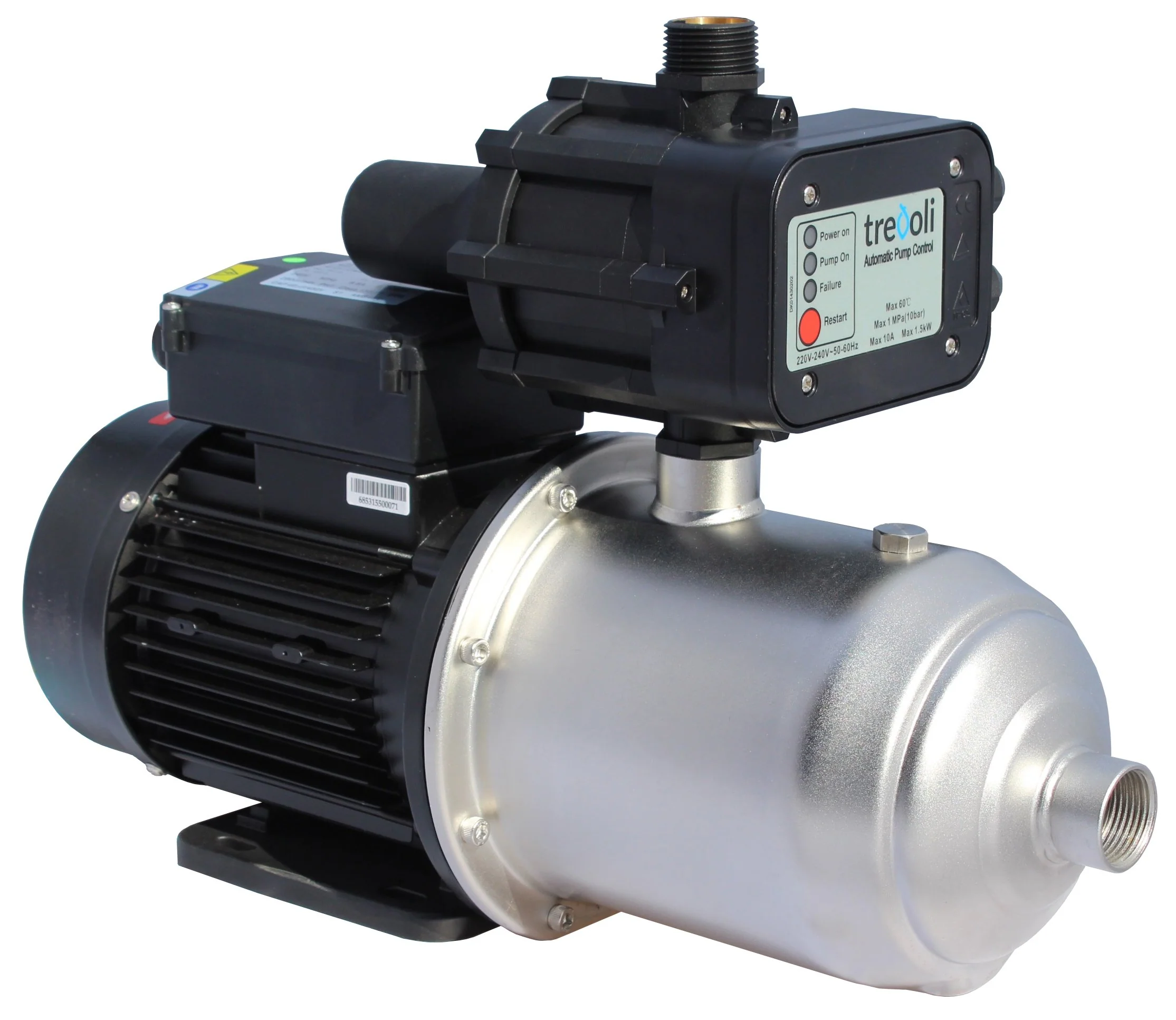

TREVOLI - CMB5-67 - Stainless Steel Multistage

CMB5-67E (Single Phase)

This pump is ideal for domestic water supply, providing adequate pressure for a small to medium single or double level home supporting up to 9 taps running at one time. Single phase option fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow) Starts automatically when the tap is turned on and Stops automatically when the last tap is turned off, Operating constantly from low flow to full flow.

Recommendation:  A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu.
A free three-way tee is provided with any pump and pressure tank combination.

Explanations of Controller Options

Specifications:

* Power -1500W - 2 Horsepower
* 1.5 Metre suction
* Max Flow rate: 100 litres per minute
* 2900 rpm
* Max Pressure 95 psi
* Max discharge head: 67 metres
* Inlet size: 1¼inch BSP (same as 32mm)
* Outlet size: 1 inch BSP (same as 25mm)
* Single phase with standard NZ 3 pin plug
* Built in thermal overload protection
* Insulation class F
* IP55 Protection
* Rated for Continuous duty
* Liquid temperature range: 0-70 deg C
* Max operating pressure: 10 bar
* Number of Impellers: 6
* Length: 446mm
* Height: 209mm
* Width: 178mm

Common Applications:

* Water supply for Large sized homes
* General water transfer systems
* Industrial/commercial applications
* Domestic Household Pumps

Features:

* Single phase option fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow)
* Operates constantly from low flow to full flow
* Stops automatically when the last tap is turned off
* Run Dry Protection
* Corrosion resistant stainless steel construction
* Stainless steel pump housing
* Stainless steel motor shaft
* Stainless steel impeller and intermediate chambers
* Built in thermal overload protection
* Very quiet operation

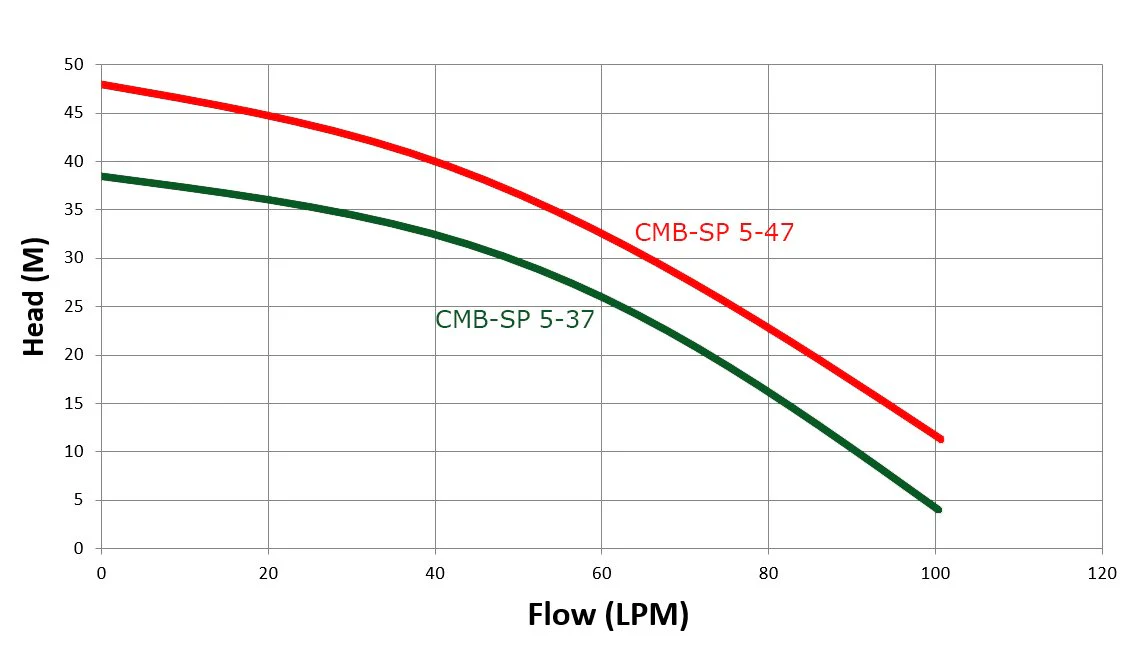

Performance:

This is a high pressure Pump - up to 95PSI, supports up to 9 taps operating at one time. (Based on 10 L/m).

2 Year back to base warranty
