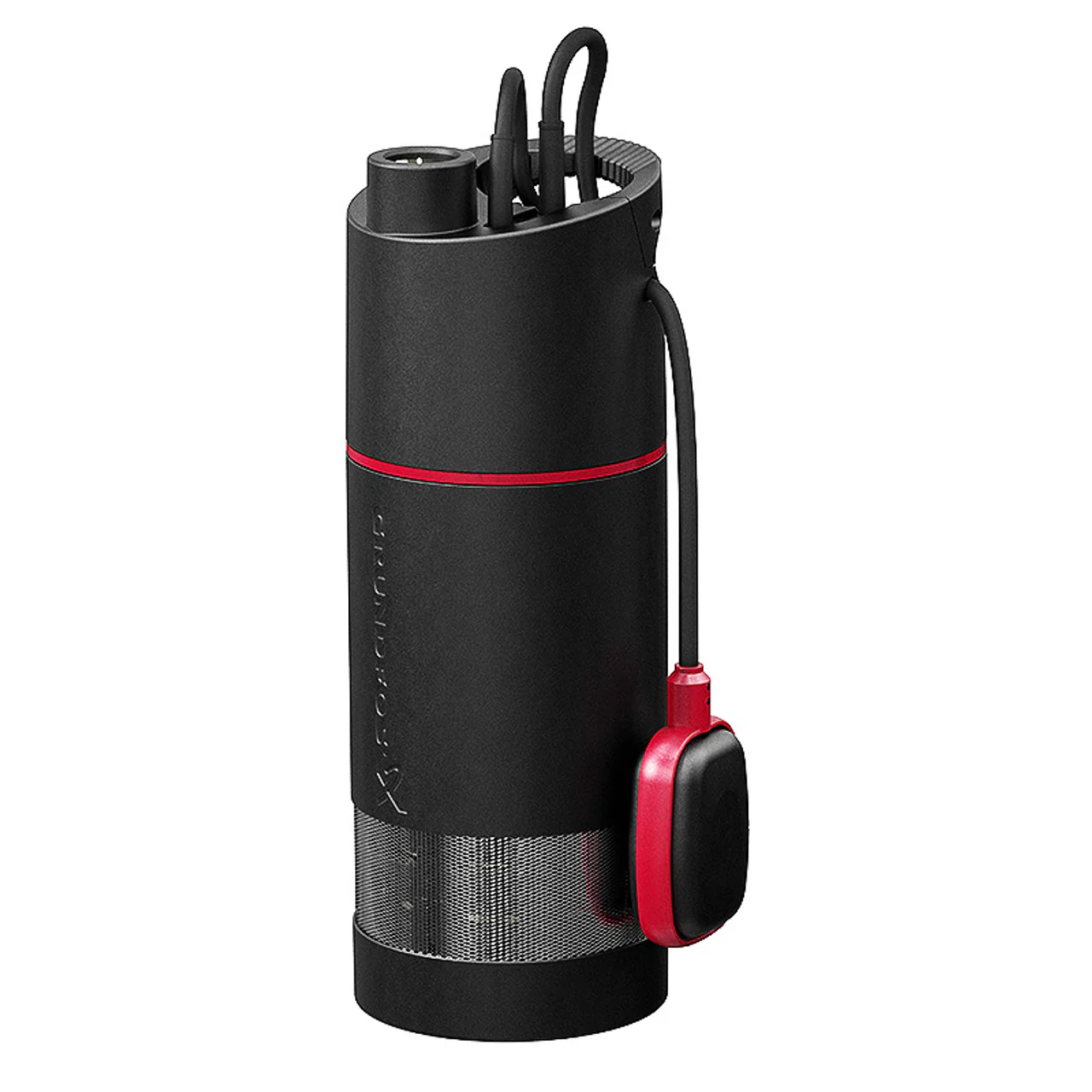

Grundfos SB Submersible Domestic Booster Pump

Please contact us regarding product as we don't always carry this item in stock

The Grundfos SB pump is a submersible booster pump designed for the pumping of clean water for domestic and rainwater applications. The SB submersible pump is silent when submerged and therefore a noiseless alternative to surface mounted pumps. The SB pump is constructed from high quality composite and stainless steel materials that are resistant to corrosion.

Specifications:

Model	kW	Amps	Max Head	Max Flow	Inlet/Outlet
SB 3-35 A	0.47	3.5	38m	100 LPM	25mm/1"
SB 3-45 A	0.55	4.0	46m	100 LPM	25mm/1"
SB 3-45AW	0.62	4.8	43m	105 LPM	25mm/1"

Note:
Models:
A: with float switch for automatic operation and dry running protection
AW: with float switch and floating suction strainer

*240 V
*Single Phase
*50 Hz
*Insulation class: B
*Enclosure class: IP68 Max
*Maximum particle size: 1 mm
*Ambient temperature: Max 50 °C
*Liquid temperature: 0 to 40 °C
*pH-value range: 4-9
* Cable: 15m with plug
* Maximum Installation Depth: 10m

Applications

*Above or below ground water tanks
* Small homes
* Water transfer

2 Year Back to Base Warranty
