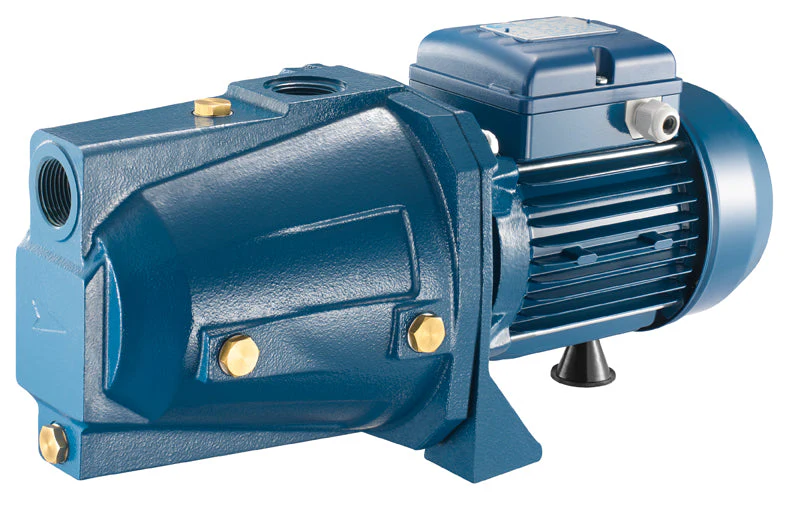

Pentax CAM 100N/61 Series - Cast Iron Jet Pump

CAM 100N/61

The Pentax CAM 100N/61 is self-priming centrifugal jet pump, ideal for house or farm water supply and transfer. The Jet/Venturi design provides the pump with the ability to lift water 8 meters below from the water source. Other applications include drawing water from rivers, ponds, wells, bores and underground tanks. The Cam series are a heavy duty and robust pump.

Explanation of Controller Options

Specifications:

* Power: 0.75kW/1.0 HP
* Head Height: 52m
* Flow Rate: 70LM
* Amps: 4.7
* Voltage: 230v/Single Phase
* Inlet/Outlet: 25mm
* Suction Lift: 8m

Features:

* Suction Lift - 8 Metres
* Heavy Duty Build
* Cast Iron Body & Motor Bracket
* Ceramic Mechanical Seal
* Stainless Steel Shaft
* Built in thermal overload protection

Operation limitations:

* Liquid temperature range: 0ºc to +50ºc
* Maximum operating pressure: 8bar/116PSI
* Insulation: Class F
* Protection: IP44
* Rating: Continuous

Applications:

* Suitable for Large Homes
* Farm supply
* Water transfer
* Drawing water from rivers, ponds, wells, bores and underground tanks

2 Year Warranty
