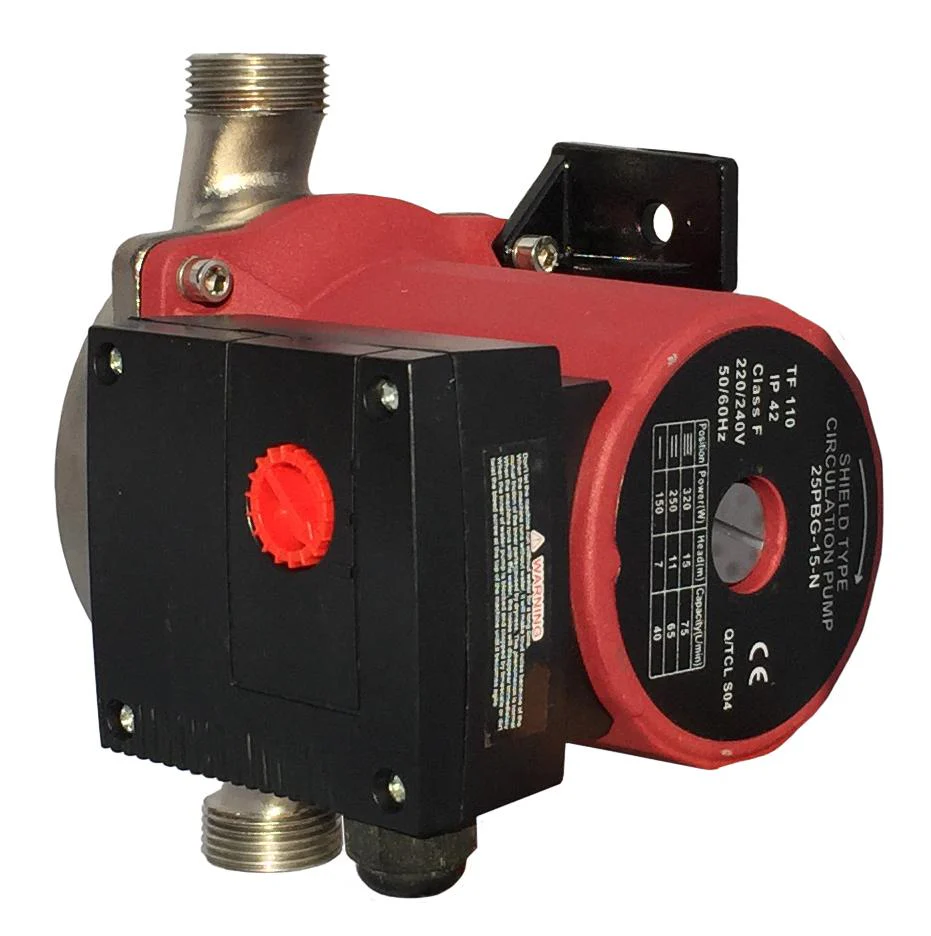

Trevoli – UPS 25-150 Circulation Pump

DESCRIPTION:

UPS pumps constitute a range of 3-speed circulator pumps.
The pumps can be used in both open and closed systems. UPS pumps are of the canned-rotor type, i.e. pump and motor form an integral unit without a shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.

Specifications:

*Mains voltage: 240v 50Hz
*Enclosure class: IP42
*Insulation class: F
*Duty rating: Continuous
*Liquid temperature range: 0-110° C
*Maximum ambient temperature: 40° C
*Maximum operating pressure: 10 bar

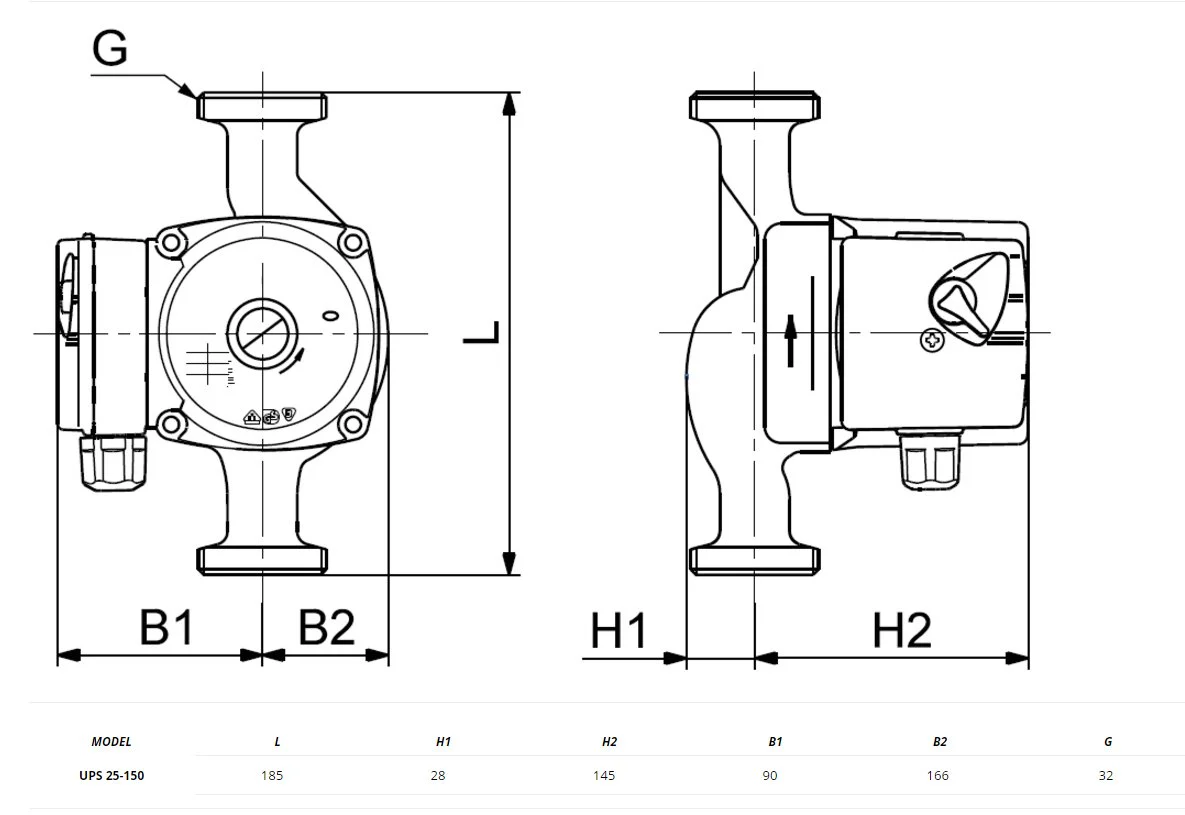

*Port to port dimensions: 185mm
*Port size: 25mm BSP thread
*Unions: Brass 20mm

ELECTRICAL DATA:

*Mains voltage: Single phase 240v 50Hz
*Input Power Speed 1: 150 W
*Input Power Speed 2: 250 W
*Input Power Speed 3: 320 W

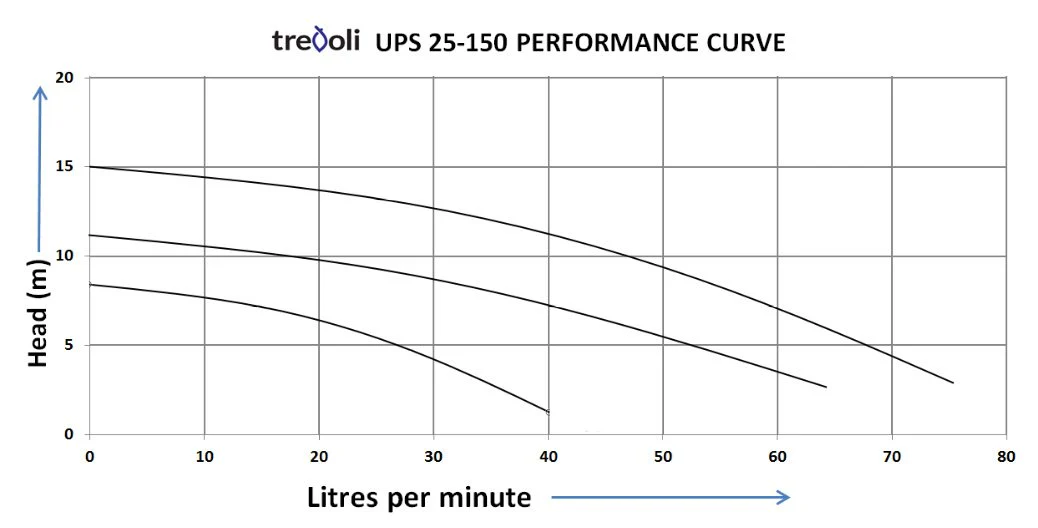

PERFORMANCE DATA:

*Speed 1: MAX - 40 L/m, 7m Head
*Speed 2: MAX – 65 L/m, 11m Head
*Speed 3: MAX – 75 L/m, 15m Head

FEATURES:

*Maintenance-free
*Low noise
*Low energy consumption
*Corrosion-resistant stainless steel pump housing
*Wide range of accessories.

PUMPED LIQUID:

UPS circulator pumps are suitable for the following liquids:

*Clean, thin, non-aggressive and non-explosive
liquids without solid particles or fibers
*Cooling liquids, not containing mineral oil
*Domestic hot water, max. 14 °dH, max. 65 °C, peak max. 70 °C
*Softened water

Applications:

The UPS 25-150 is designed for circulation of liquids in heating and air-conditioning systems. This pump has a stainless steel housing, suitable for use in hot-water service systems. Examples of typical applications are:

*One- and two-pipe heating systems
*Main pumps
*Zone pumps
*Boiler shunt pumps
*Pumps for heating surfaces
*Calorifiers
*Underfloor heating systems
*Solar heating systems
*Heat pump systems
*Geothermal heating systems
*Heat recovery systems
*Two-pipe air-conditioning systems
*Pumps for refrigeration units.

UPS25-150 - ONE YEAR WARRANTY
