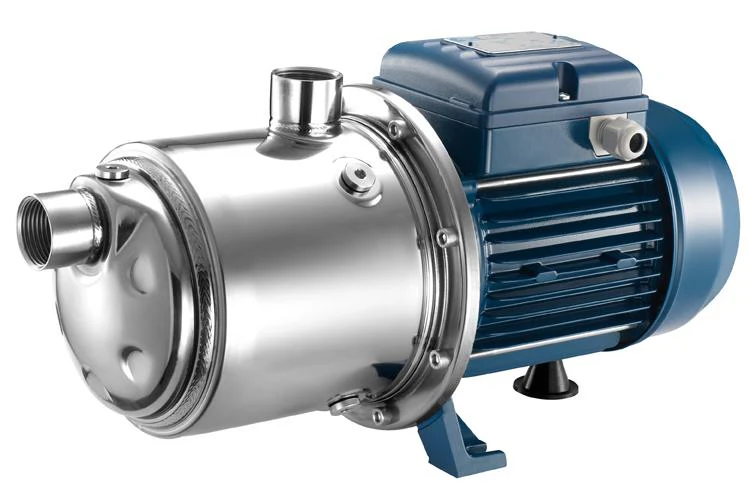

Pentax Ultra 5S U5-180/6- Stainless Steel Multistage Pump

Ultra U5S-180/6

The Pentax Ultra S range are stainless steel multistage pumps well suited to house and farm water supply. They have a robust fully stainless steel wet end and are very quiet in operation. The Ultra S Series are available in a wide range of models to match your application. They can also cover a wide range of applications such as pumping of clean non-loaded fluids, irrigation, drinking and glycol water, water treatment, heating and air conditioning and washing systems.

Specifications:

* 230v
* Single Phase
* 1.3 kW/1.8 HP
* Max Head: 69m
* Max Flow Rate: 140LPM
* Max PSI: 98
* Inlet/Outlet: 25mm
* Suction Lift: 1.5m
* Non Self Priming
* Amps: 7.7

Features:

* Offset suction for improved suction ability (3S & 5S models)
* Liquid temperature: -5 ÷ +35 °C
* Maximum operating pressure:  8.5 bar (125 PSI)
* Enclosure class: IP44
* Insulation class: F
* Duty rating: Continuous
* Totally enclosed, fan cooled standard squirrel frame type motor
* Single phase versions fitted with auto reset internal overload
* Three phase version require user supplied overload to be fitted in installation
* 304 Stainless steel impellers, Diffusers, Seal plate & Pump casing
* 303 Stainless steel pump shaft
* Mechanical Seal: ceramic-graphite (6 impellers or less)
* Mechanical Seal: graphite-silicon carbide (7 impellers or more)
* Aluminium motor bracket

Applications:

* House and farm water supply
* Clean Water/Rain Water/Tank Water
* Pressure boosting
* Water treatment
* Industrial circulation
* Hot water cleaning systems

2 Year back to Base Warranty
