TREVOLI SV-750A-3 Cast Iron Submersible Dirty Water/Sewage-Three Phase

Pump

Suitable for use as an Effluent Pump, Dirty Water Pump, Drainage Pump, Septic and Aerated sewage treatment Pump, Grey Water Pump and Irrigation Pump

Specifications:

*Power: 750 Watt (1 HP) three phase
*2.1 amp
*Flow rate: 430 L/min
*Max delivery height: 11 metres
*Max immersion depth: 8 metres
*Weight: 18 kg
*Outlet size: 80mm

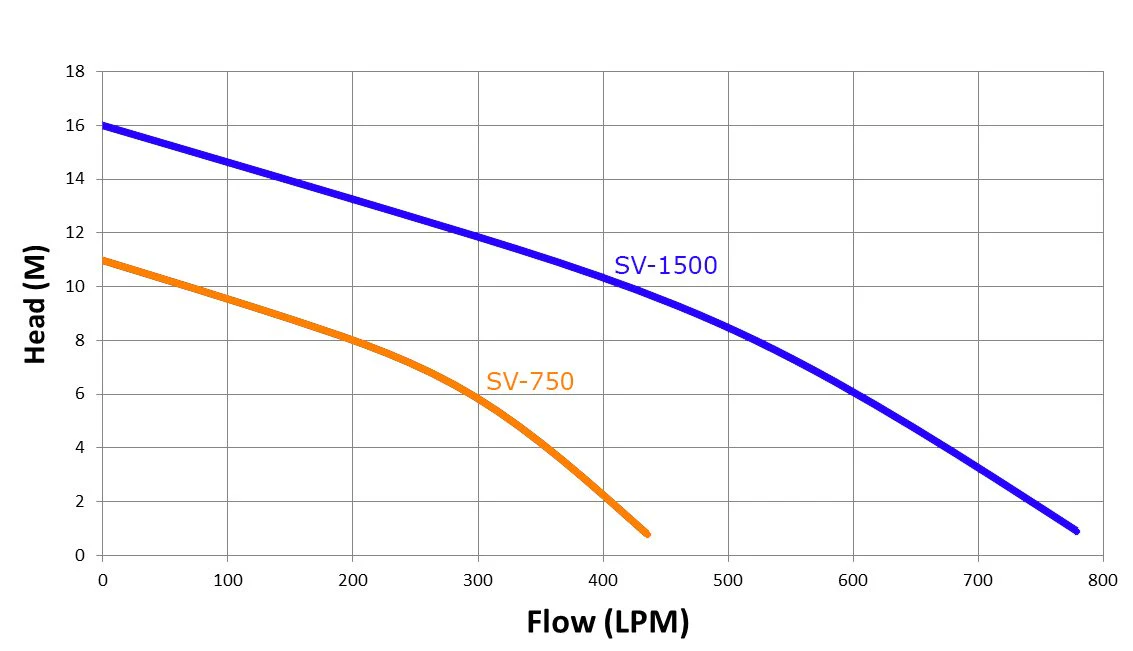

Head (metres) / Flow (LPM)



Features:

*Easy to use
*Non clogging Vortex impellor design
*Rated for continuous use
*Can process long fibres and solids up to 37mm
*Has a float switch for run-dry protection
*Motor has built in auto-reset thermal overload protection
*Double mechanical seals with oil chamber and lip seal for added protection
*10 Metre R05RNF neoprene chemical and oil resistant electrical cable.
*Comes with 80mm outlet hose fitting (removable)
*Solid Cast Iron pump body and impeller for durability

Limitations

*The maximum depth it is allowed in water is 8m from its centre of impeller
*Liquid to be pumped should have a PH: 6-8
Common Applications: Effluent pump, Drainage pump, Dirty water pump.

SV Series Brochure

TWO YEAR WARRANTY
