ZEN-DGBLUEP SERIES - Submersible Vortex Water Pump

Please contact us regarding product as we don't always carry this item in stock

ZEN-DGBLUEP
Suited and reliable for domestic and commercial applications including all de-watering tasks, pumping out sumps, swimming pools, flooded areas, effluent pumping and drawing water from wells. Used with soiled biological wastewaters and sewage.

Specifications:

Model	Watts	HP	Flow (LPM)	Head (M)	Outlet (MM)	Particle Size (max)
DG50	370w	.5	270	6	40	40
DG75	550w	.75	420	10	40	40
DG100	750w	1	430	11	40	40
DG150	1100w	1.5	600	12	50	50
DG200	1500w	2	690	15	50	50

* Also available in 3 phase -Please enquire about options including no Float Switch

Features:

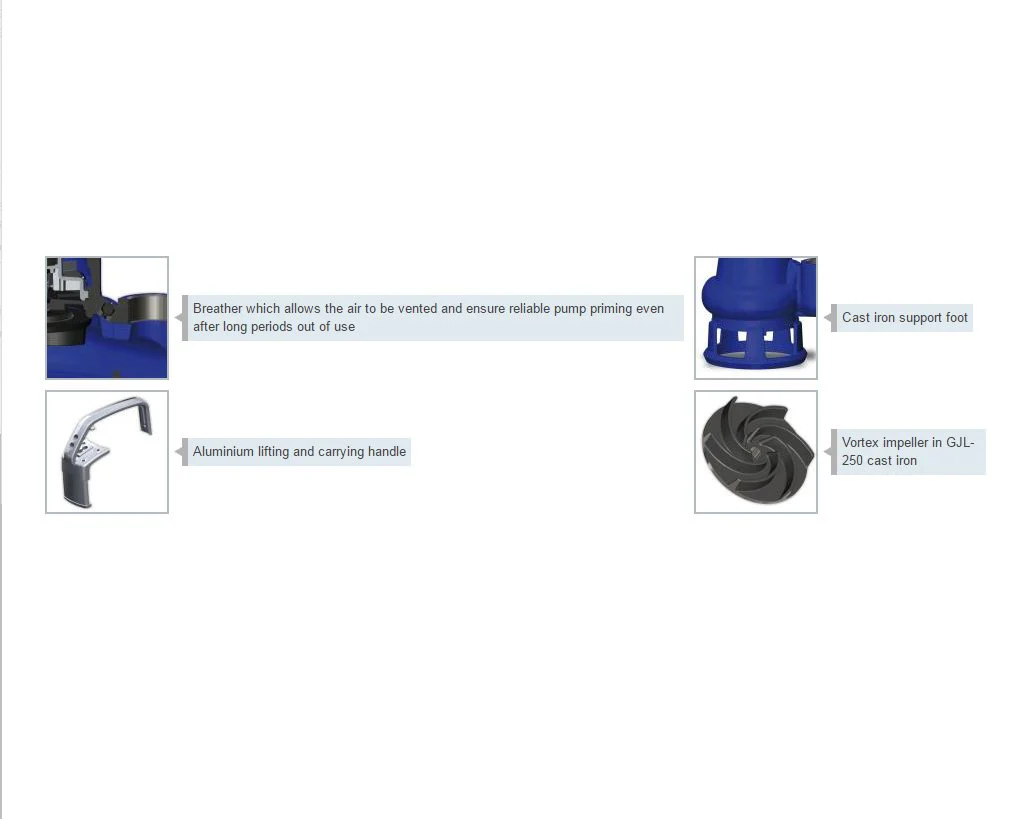

* New series of submersible vortex pumps for domestic and professional use.
* DG (DRAGA) version with vortex recessed impeller to pass soft solids to 40-50mm diameter.
* Float switch standard on single-phase versions.
* 10 m power lead (with 3 pin plug on single-phase pumps). Suits outdoor installations.
* Patented sealing system incorporating dual silicon carbide / graphite alumina mechanical seals in oil bath. Longer seal life.
* Anti-stressing system for power cable. Reduces cable damage and water entry.
* Cable holder grommet built into handle. Allows adjustment of float switch cable length.
* Cast iron pump body. For durability.
* Cast Iron support base.
* Supplied with standard power cables

Technical Features:

* Maximum operating temperature: 40 °C
* Maximum immersion depth: 20 m
* PH of treated fluid:  6 to 14 pH
* Max starts per hour: 30
* Nominal absorbed current (In) 4.1 A
* rated power factor (cos phi) 0.99
* Nominal power frequency (f) 50 Hz
* N° phases 1
* IPMotor:  68
* ATEX thermal class not applicable
* Insulation class:F

Material:

* Silicon Carbide mechanical seals
* Case Grey Cast Iron - EN-GJL 250 (02)
* Shaft Stainless Steel - AISI 420 (23)
* Standard gasket Rubber - NBR (77)
* Nuts and bolts Stainless Steel - Class A2-70 (42)
* Hydraulic Grey Cast Iron - EN-GJL 250 (02)

Applications:

* Effluent pump
* Drainage pump
*General water pump
* Sumps
* Swimming pools
* Wastewaters
* Sewage.

For more information view the Zenit brochure in the attachments tab.

Made in Italy and comes with a 2 Year Warranty
