ZENIT DGSTEEL SERIES

Please contact us regarding product as we don't always carry this item in stock

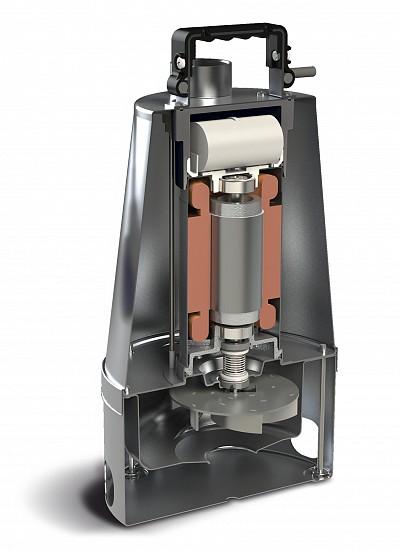

The Zenit DG Steel Vortex pump series comes in 304 Stainless Steel, complete with twin mechanical seals in oil bath and through motor cooling which guarantees motor cooling even at low pumping levels. Ideal for clean and dirty water pumping applications.

Specifications:

Model	Wattage	Max Head	Max Flow	Max Solid Size	Outlet
DGSTEEL37MA	370	8.7m	180lpm	25mm	32mm
DGSTEEL55MA	550	8.1m	330lpm	38mm	38mm
DGSTEEL75MA	750	10m	360lpm	38mm	38mm

* Rated Output: 230v
* Max Immersion Depth: 10m

Features:

* Mains frequency: 50 Hz Current: 3.1 amps
* Capacitor: 8uF
* Motor duty: Continuous
* Motor type: Asynchronous
* Motor protection: In-built thermal overload
* Ingress protection: IP 68
* Insulation class: F
* Power cable length: 10 m
* Clean water temperature range: 2-35°C
* Fluid PH: 6-14
* Max start ups per hour:30
* Decibel:70 dB
* Fluid Viscosity: 1mm 2/s

Technical Features:

* Pump Body: Stainless steel AISI 304
* Handle: Polypropylene + 30% Glass Fibre
* Shaft: Stainless steel AISI 420
* 3 Seals: 2 x Double mechanical seal (SiC-Al) in oil sump with food grade Oil lubrication
* 1 with V-Ring in direct contact with the liquid.
* Impeller: Chrome-nickel steel AISI 304
* External Float lead
* Std 3 Pin Plug

Applications:

* Clean Water
* Soiled/Dirty water applications containing soilds up to 25-38mm.
* Sewage
* Drainage pits
* Grey water
* Drainage
* Livestock farms
* Car washes
* Hydro-sanitary

Dimensions: H x W = 350mm x 170mm

Two Year Warranty
